IBM Elastic Storage System 5000 Series

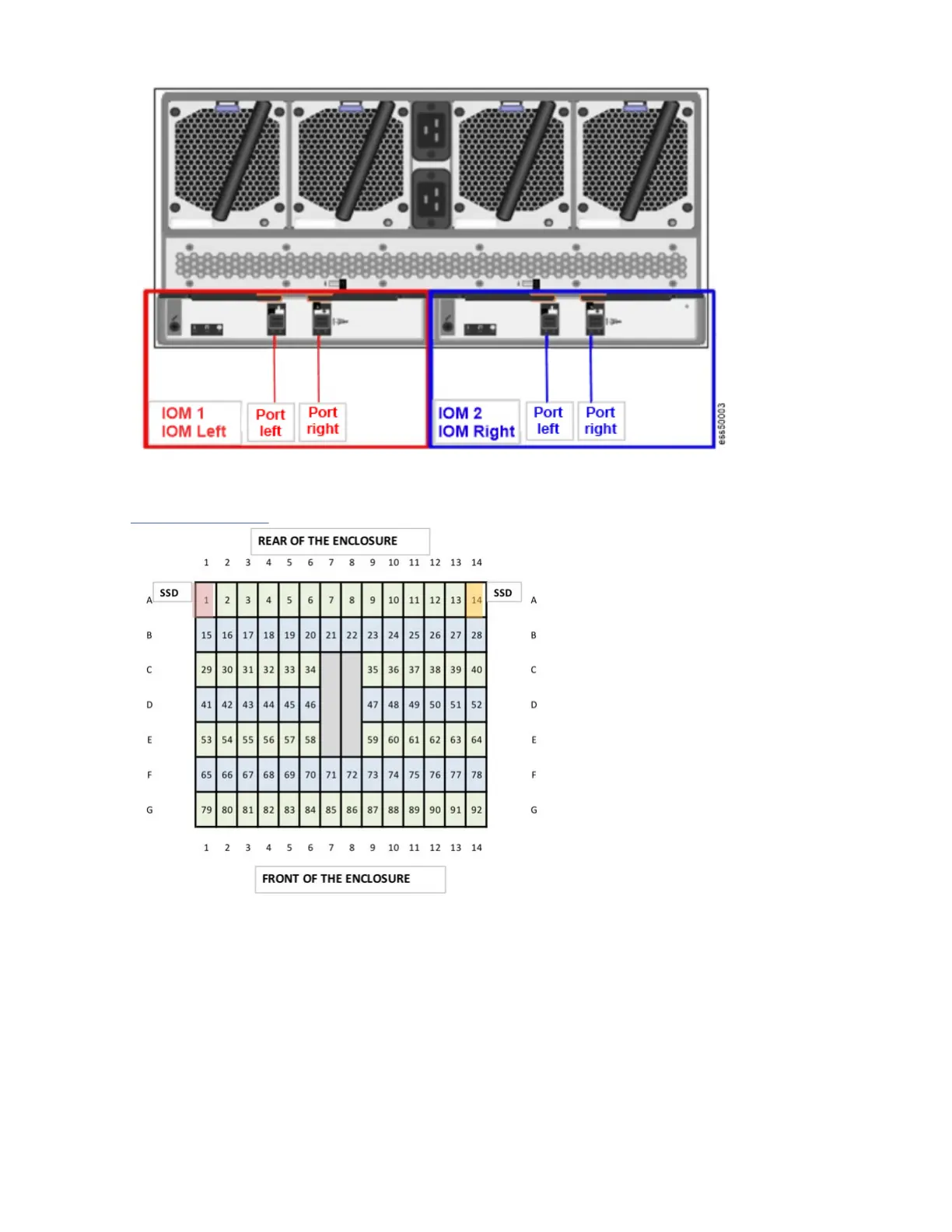

Figure 3. Model 092 expansion enclosure rear view
Figure 4 on page 21 shows the disk locations in the Model 092 expansion enclosure.
Figure 4. Drive locations of Model 092 expansion enclosure
Chapter 3. System overview
21
