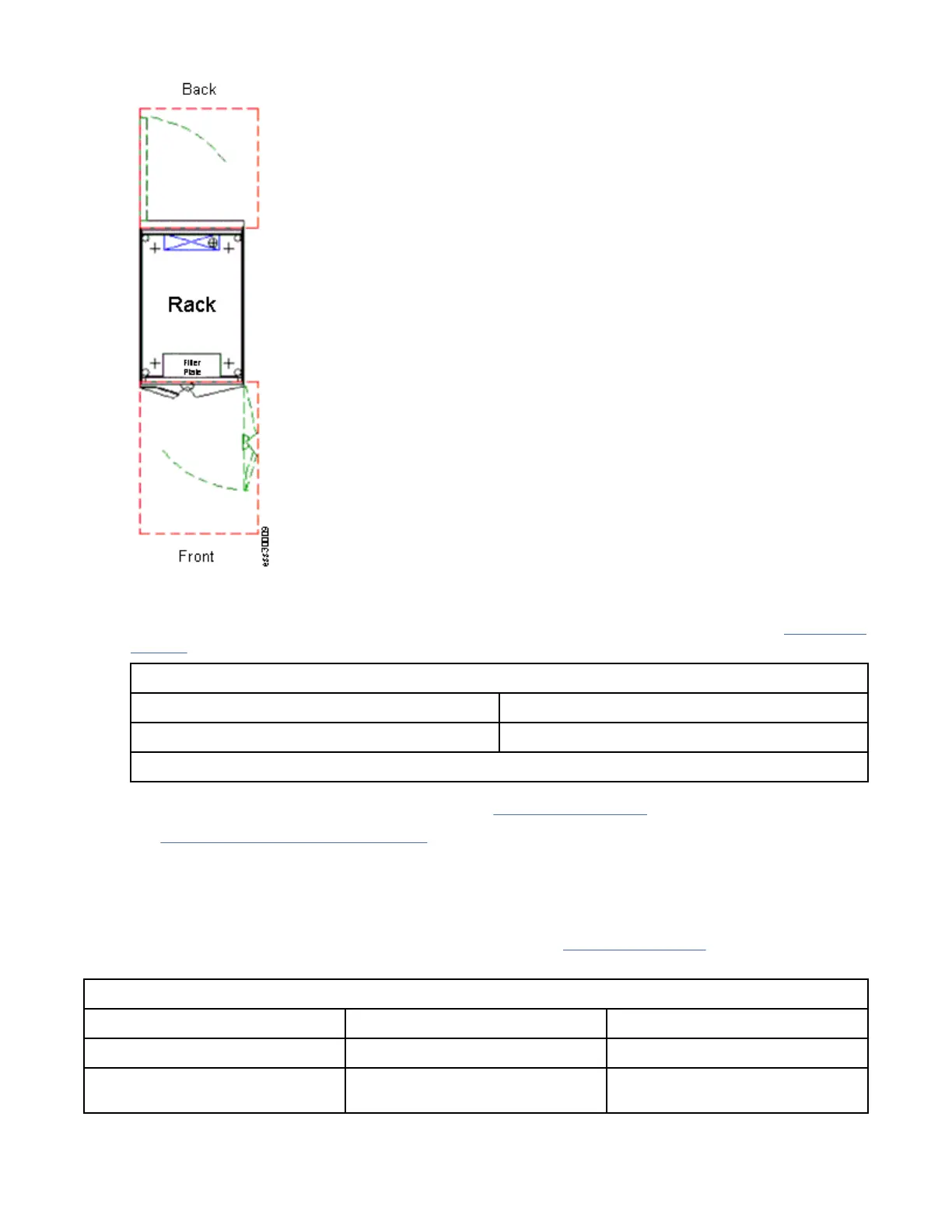

Figure 6. Sample illustration to show space around the rack
For a Model 092 expansion enclosure, use the recommended measurements that are given in Table 11 on
page 30.
Table 11. Service clearance requirements
Front
1
Back
1200 mm (47 in.) 1000 mm (39 in.)
1
Storage racks require larger service clearances in the front of the rack.
For more information on the layout of the room, see Computer room layout
See Site preparation and physical planning section to help you prepare your physical site for the
installation of a Model 092 expansion enclosure.
Additional space requirements
Ensure that these additional space requirements, as shown in Table 12 on page 30, are available around
the enclosures.
Table 12. Clearances
Location Additional space requirements Reason
Left and right sides 50 mm (2 in.) Cooling air flow
Back Minimum: 100 mm (4 in.) Cable exit
