IBM Elastic Storage System 5000 Series - Model 092 Expansion Enclosure IOM Ports

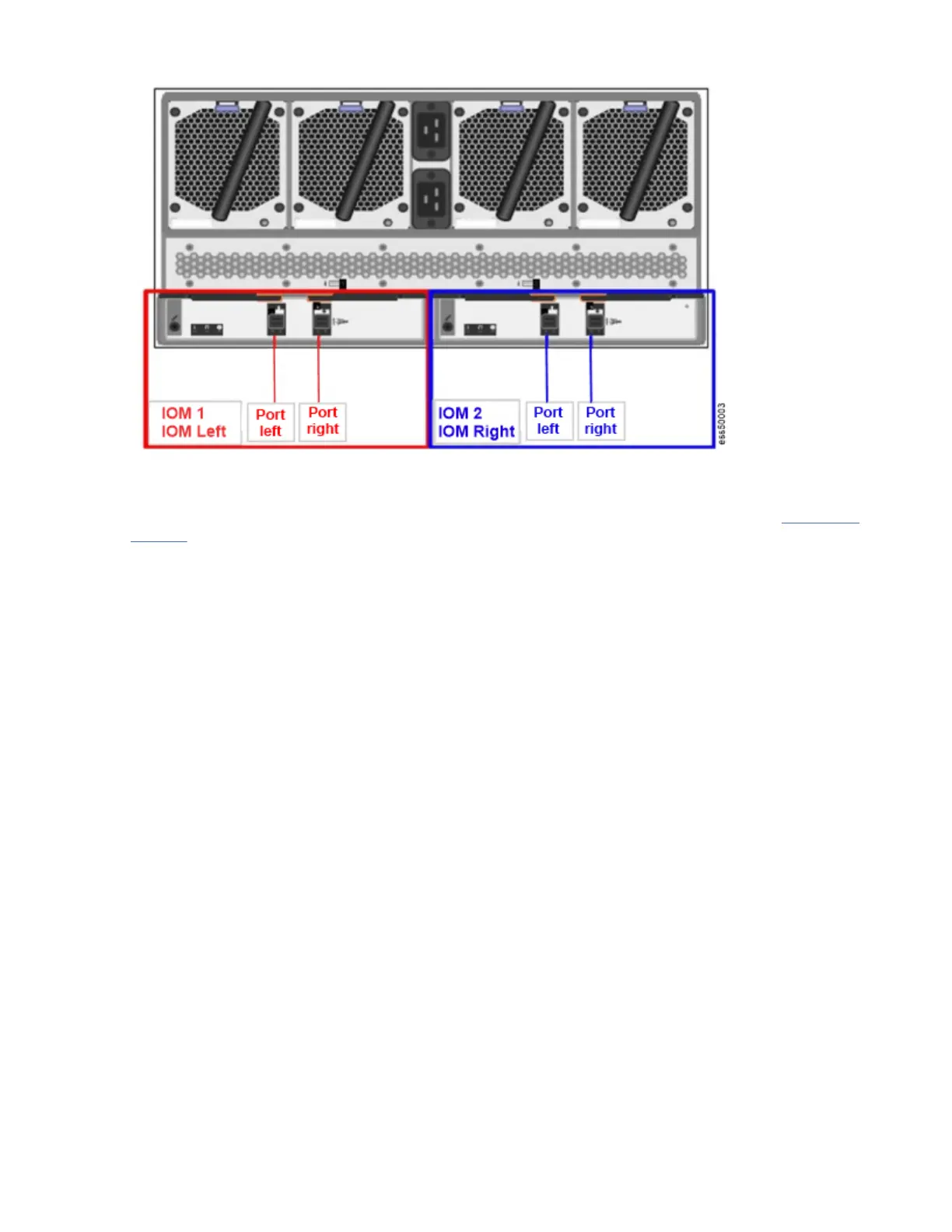

Figure 7. Model 092 expansion enclosure IOM ports
Up to seven Model 092 expansion enclosures can be attached to an ESS 5000 building block. Figure 8 on
page 35 shows the front (left) and rear (right) view of the I/O server nodes and Model 092 expansion
enclosures.
