IBM Elastic Storage System 5000 Series User Manual

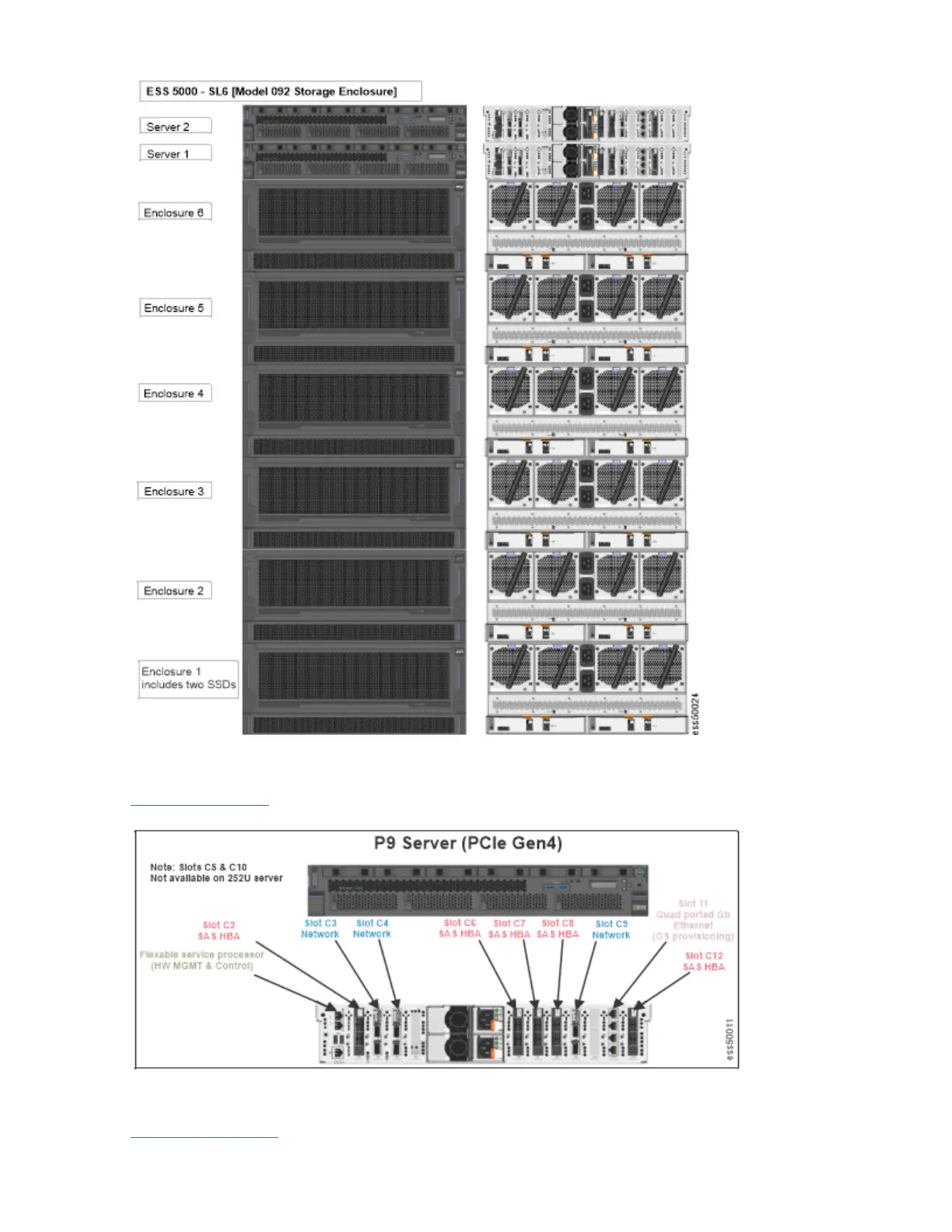

Figure 8. Front and rear view of I/O servers and Model 092 expansion enclosures
Figure 9 on page 35 shows each I/O server node that is preinstalled with ve 12 Gbps SAS host bus
adapters in slots C2, C6, C7, C8, and C12.
Figure 9. SAS host bus adapters
Figure 10 on page 36 shows port location of SAS host bus adapters.
Chapter 4. Planning for hardware
35
