Components on the rear of the enclosure

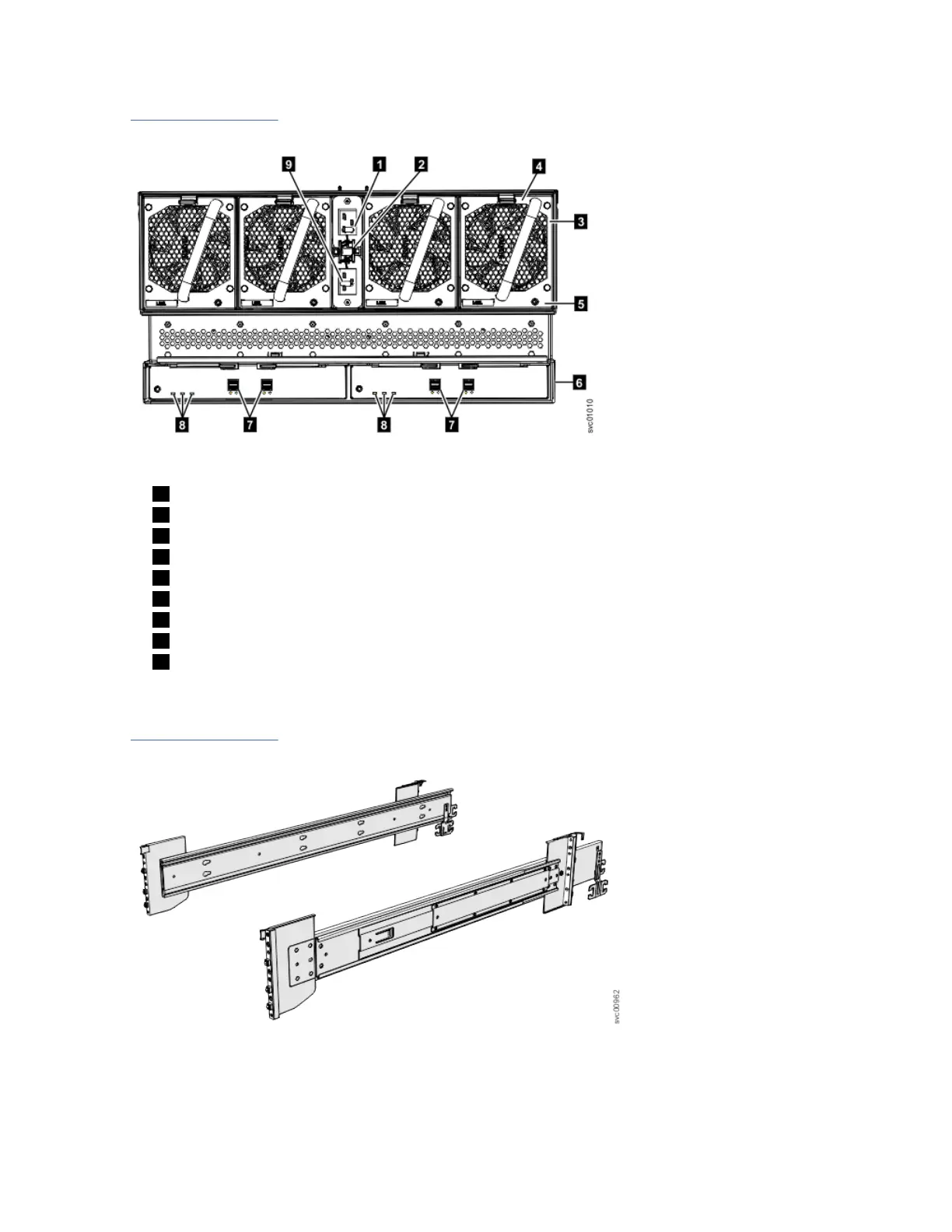

Figure 17 on page 43 shows the components on the rear of the Model 092 expansion enclosure. Four
fan modules and two expansion enclosures are accessible from the back of the enclosure.
Figure 17. Features on the rear of the Model 092 expansion enclosure
1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
4 Fan release latch
5 Fan fault indicator
6 Expansion canister
7 SAS ports and indicators
8 Expansion canister indicators
9 Power cable connector for PSU 1
Support rails
Figure 18 on page 43 shows the support rails for the expansion enclosure. The support rails are
packaged separately from the expansion enclosure.
Figure 18. Support rails
Chapter 5. Installing Model 092 expansion enclosure
43
