Installing or replacing the top cover
You can replace the top cover on a Model 092 expansion enclosure during the installation process or after
you complete a service task.
Important: You can install the cover while the expansion enclosure is powered on. To maintain operating
temperature, replace the cover within 15 minutes of completing other service tasks. When the cover is
removed, the reduction in airflow through the enclosure might cause the enclosure or its components to
shut down to protect from overheating.
To install or replace the top cover on the Model 092 expansion enclosure, complete the following steps:
1. Carefully lower the cover and ensure that it is aligned correctly with the back of the enclosure, as
shown in Figure 35 on page 54.

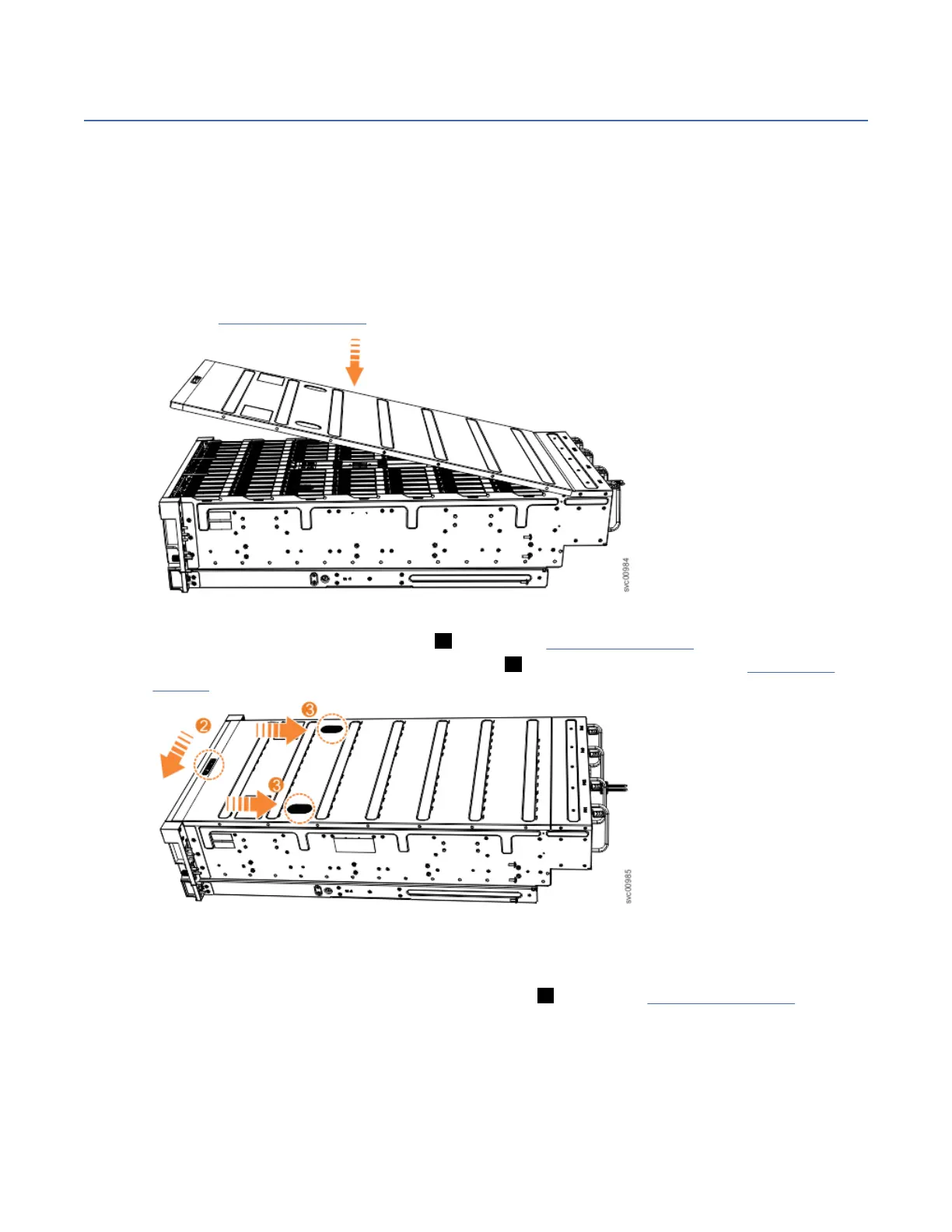

Figure 35. Aligning the top cover
2. Push the cover release lever to the side ( 2 ) as shown in Figure 36 on page 54.
3. Slide the cover towards the back of the enclosure ( 3 ) back until it stops, as shown in Figure 36 on
page 54.
Figure 36. Replacing the top cover
4. Verify that the cover correctly engages the cover release latch and all of the inset tabs on the
expansion enclosure.
5. Lock the cover into position by sliding the release lever 4 , as shown in Figure 37 on page 55
54
IBM Elastic Storage System 5000: Model 092 Hardware Guide
