Installing the compute node cover
Use this information to install the compute node cover.
Before you begin
Before you install the compute node cover, read “Safety” on page v and
“Installation guidelines” on page 487.
Attention: You cannot insert the compute node into the IBM Flex System chassis
until the cover is installed and closed. Do not attempt to override this protection.
Statement 21
CAUTION:
Hazardous energy is present when the compute node is connected to the power
source. Always replace the compute node cover before installing the compute
node.
Procedure
To install the compute node cover, complete the following steps:
1. Carefully lay the compute node on a flat, static-protective surface, orienting the
compute node with the bezel pointing toward you.

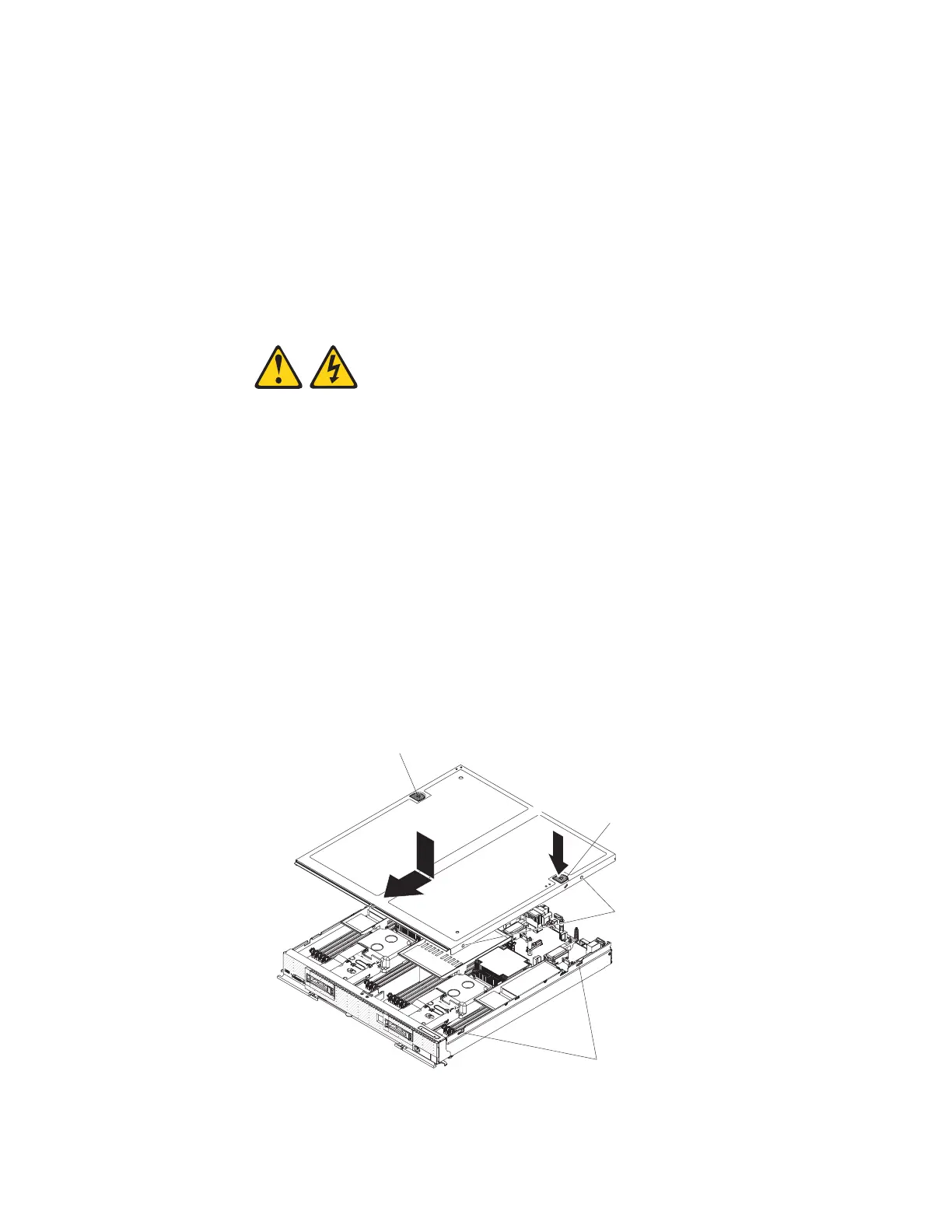

2. Orient the cover so that the posts on the inside of the cover slide into the slots
on the compute node.
Note: Before you close the cover, make sure that the air baffles and all
components are installed and seated correctly and that you have not left loose
tools or parts inside the compute node.
Release
button
Push point
Posts
Slots
3. Hold the front of the compute node and slide the cover forward to the closed
position, until it clicks into place.
