IBM Flex System x440 Compute Node - Page 557

2x CPU (Normal config)
Socket 3 Socket 1
Socket 4 Socket 2
CPU
1
ETE
Mezz 1
Mezz 2
Mezz 3
Mezz 4
DMI
SW
PCH
1x CPU
()Socket 1 functional but socket 1 DMI path broken
Socket 3 Socket 1
Socket 4 Socket 2
CPU
0
ETE
Mezz 1
Mezz 2
Mezz 3
Mezz 4
DMI
SW
PCH
CPU
0
CPU
1

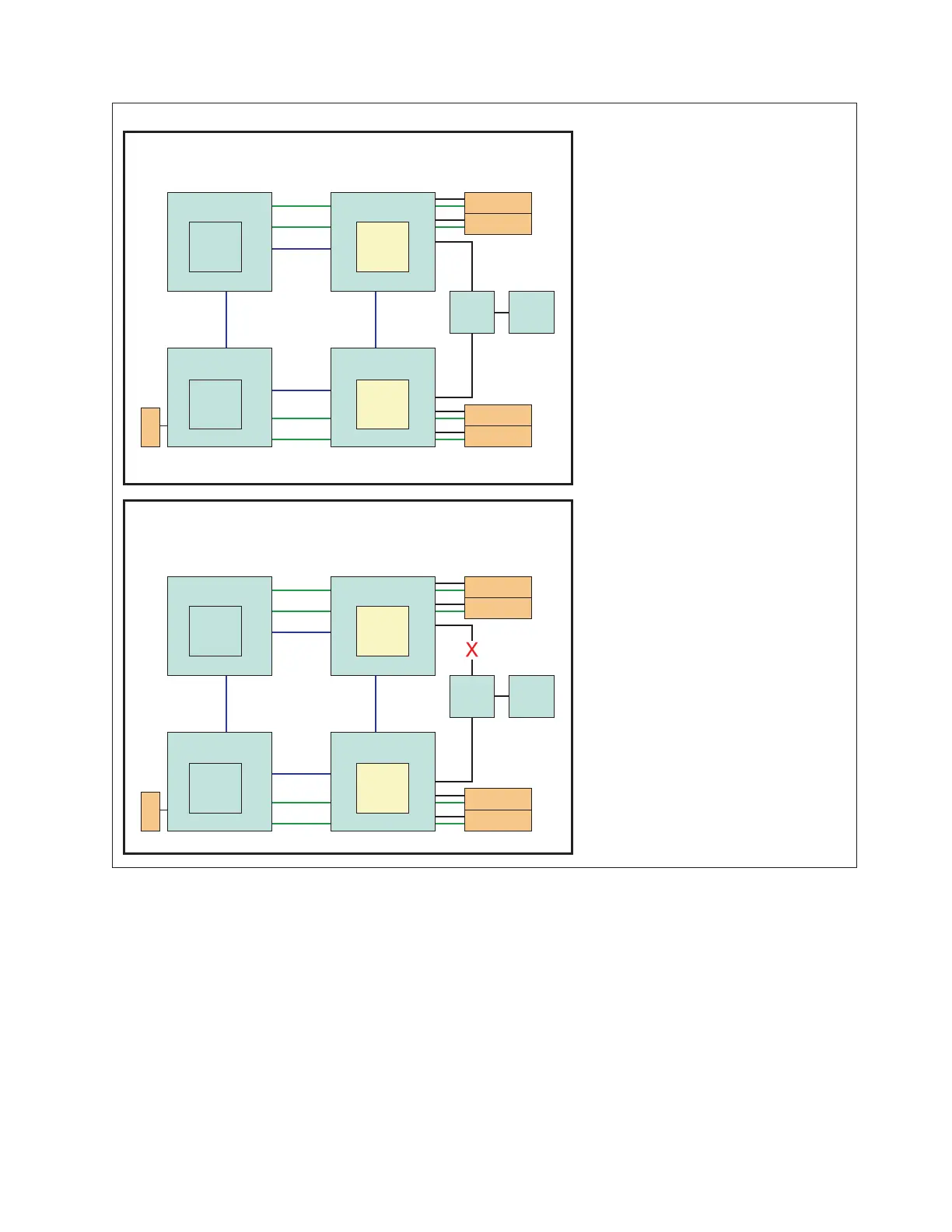

Figure 3. Supported two CPUs configuration
Chapter 7. Installing, removing, and replacing compute node components 545
