System-board LEDs

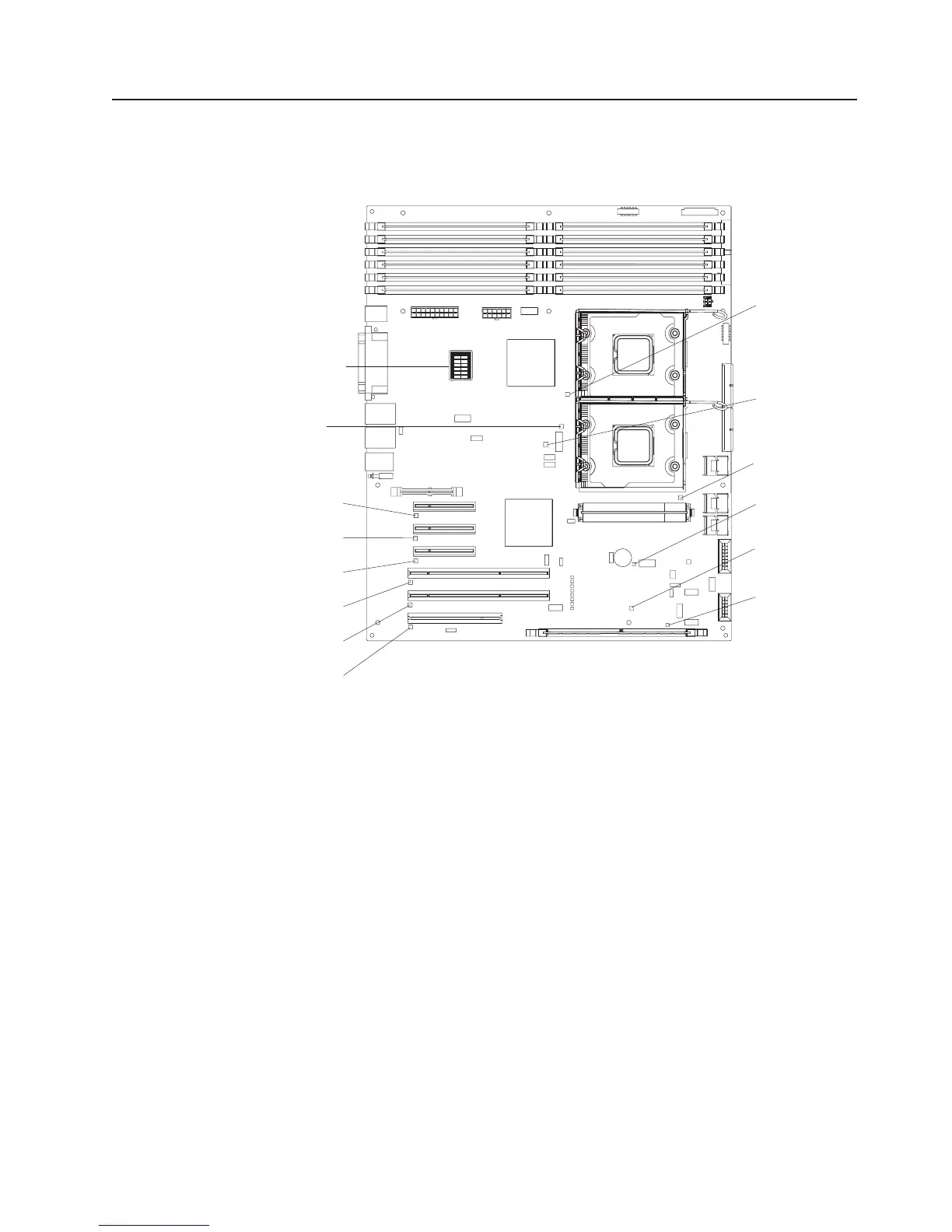

The following illustration shows the LEDs on the system board. You might have to
refer to this illustration when solving problems with the server.
1
2
3
4
5
6
7
8
9
10
11
12
DIMM LEDs
Slot 1
error LED
Slot 2
error LED
Slot 3
error LED
Slot 4
error LED
Slot 5
error LED
Slot 6
error LED
Microprocessor
mismatch
LED
DIMM
error LEDs
1 through 12
Microprocessor 1
error LED
Microprocessor 2
error LED
VRM error
LED
BMC heartbeat
LED
ServeRAID
error LED
Battery LED
Use the system-board LEDs to diagnose system errors. An error LED is lit to
indicate a problem with a specific component. After a problem is corrected, the LED
will not be lit the next time that the server is restarted; if the problem remains, the
LED will be lit again. For additional information, see the Problem Determination and
Service Guide on the IBM System x3400 Documentation CD.
Chapter 5. Solving problems 91

IBM System x3400 Type 7975 Specifications

General

Processor Sockets	2
Memory Slots	8 DIMM slots
Chipset	Intel 5000P
Network	Dual Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 5000/5100/5300 series, Intel Core 2 Duo
Memory	Up to 32 GB DDR2 ECC
Form Factor	Tower
RAID Support	RAID 0, 1
Power Supply	835W (optional redundant)
Hard Drive Interface	SATA/SAS
