Major components of the server
Note: The major components of the server vary, depending on the machine type
and model.
Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.

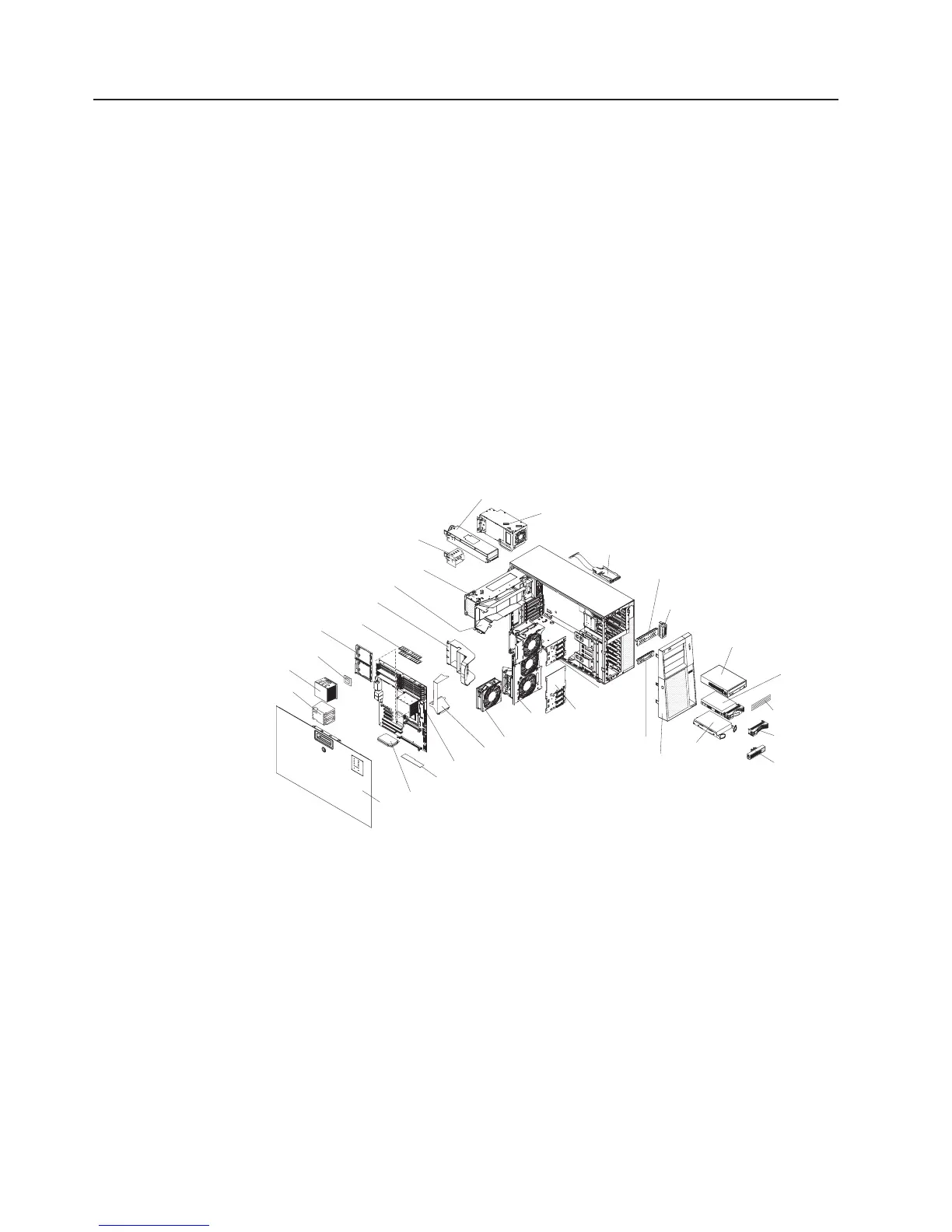

The following illustration shows the major components in the server.
Note: The illustrations in this document might differ slightly from your hardware.
Bezel
Control panel assembly
USB cable assembly
SAS/SATA
backplane
S ATA
backplate
Fan
assembly
Hot-swap fan
Hot-swap power supply
Fixed power supply
Hot-swap power supply filler
Power supply cage
Hot-swap
drive
Hot-swap
drive trim piece
Simple-swap
drive
Simple-swap
drive trim piece
DVD
drive
DVD drive
trim piece
Processor baffle
ServeRAID 8k-1
VRM
Heatsink
Microprocessor
System board
Heat sink
retention bracket
Cover
Heat sink
filler
DIMMs
Drive bay EMC shield
Hard disk drive
EMC shield
DIMM air duct
Rear adapter retention bracket
8 System x3400 Types 7973, 7974, 7975, and 7976: Installation Guide
