Removing the bezel
Important: Before you install optional hardware, make sure that the server is
working correctly. Start the server, and make sure that the operating system starts,
if an operating system is installed, or that a 19990305 error code is displayed,
indicating that an operating system was not found but the server is otherwise
working correctly. If the server is not working correctly, see the Problem
Determination and Service Guide for diagnostic information.
To remove the bezel, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 9.
2. Unlock the side cover.
Note: You must unlock the side cover to remove the bezel.

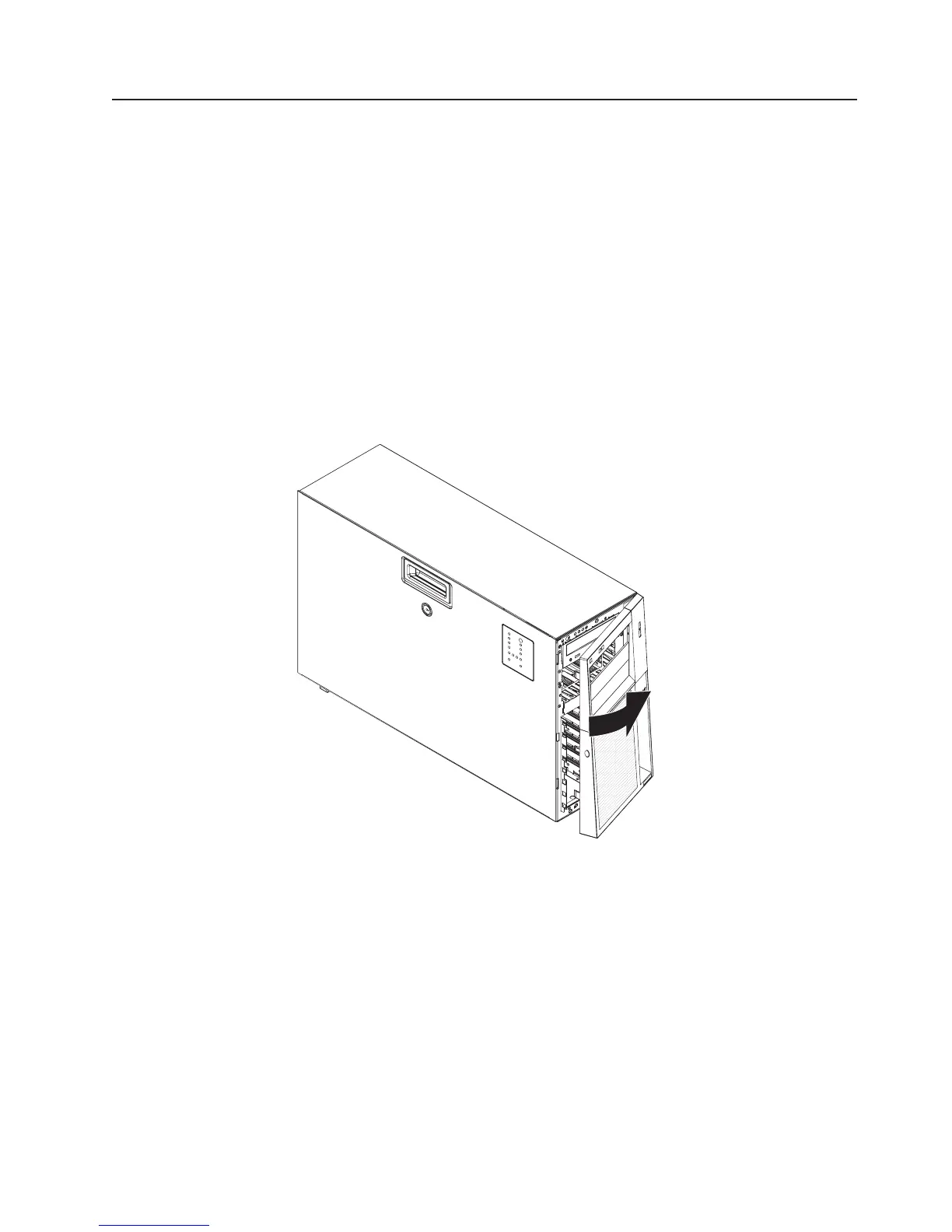

3. Position your finger on the depressed area on the left side of the bezel and
rotate the bezel away from the server.
4. Press the retention tabs on the hinge assembly toward each other and pull the
hinge assembly out of the chassis.
Chapter 2. Installing options 13

IBM System x3400 Type 7975 Specifications

General

Processor Sockets	2
Memory Slots	8 DIMM slots
Chipset	Intel 5000P
Network	Dual Gigabit Ethernet
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 5000/5100/5300 series, Intel Core 2 Duo
Memory	Up to 32 GB DDR2 ECC
Form Factor	Tower
RAID Support	RAID 0, 1
Power Supply	835W (optional redundant)
Hard Drive Interface	SATA/SAS
