Chapter 3. Server controls, LEDs, and power
This chapter describes the controls and light-emitting diodes (LEDs) and how to
turn the server on and off.
Front view

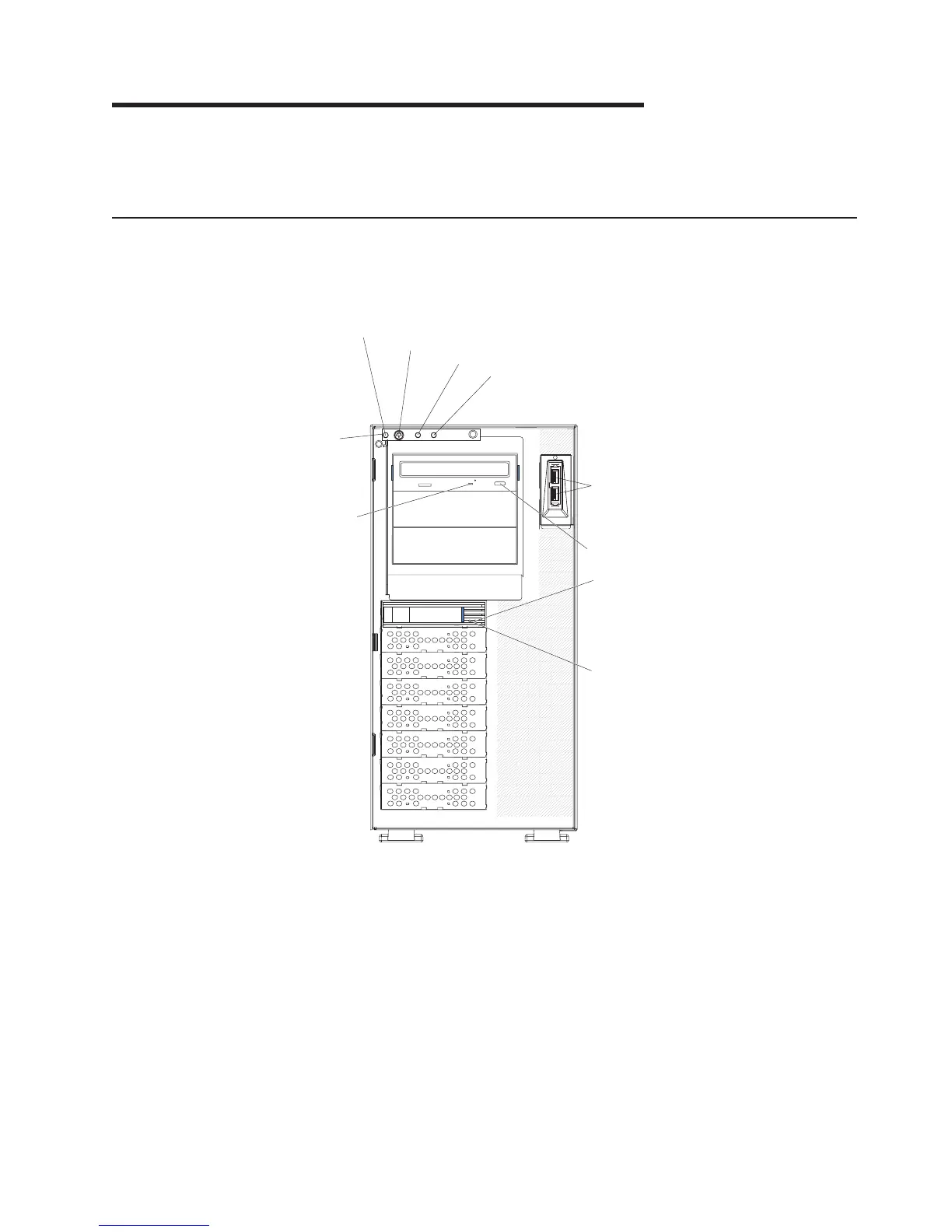

The following illustration shows the controls, LEDs, and connectors on the front of
the hot-swap server models.
USB connectors
Power-control button
Front
information
panel
CD or DVD-eject button
CD or DVD drive
activity LED
(green)
System power LED
Hard disk drive activity LED
System error LED
Hot-swap hard disk
drive activity
LED (green)
Hot-swap hard disk
drive status
LED (amber)
© Copyright IBM Corp. 2008 37
