IBM ThinkPad R40 Hardware Maintenance Manual

Removing and replacing a FRU

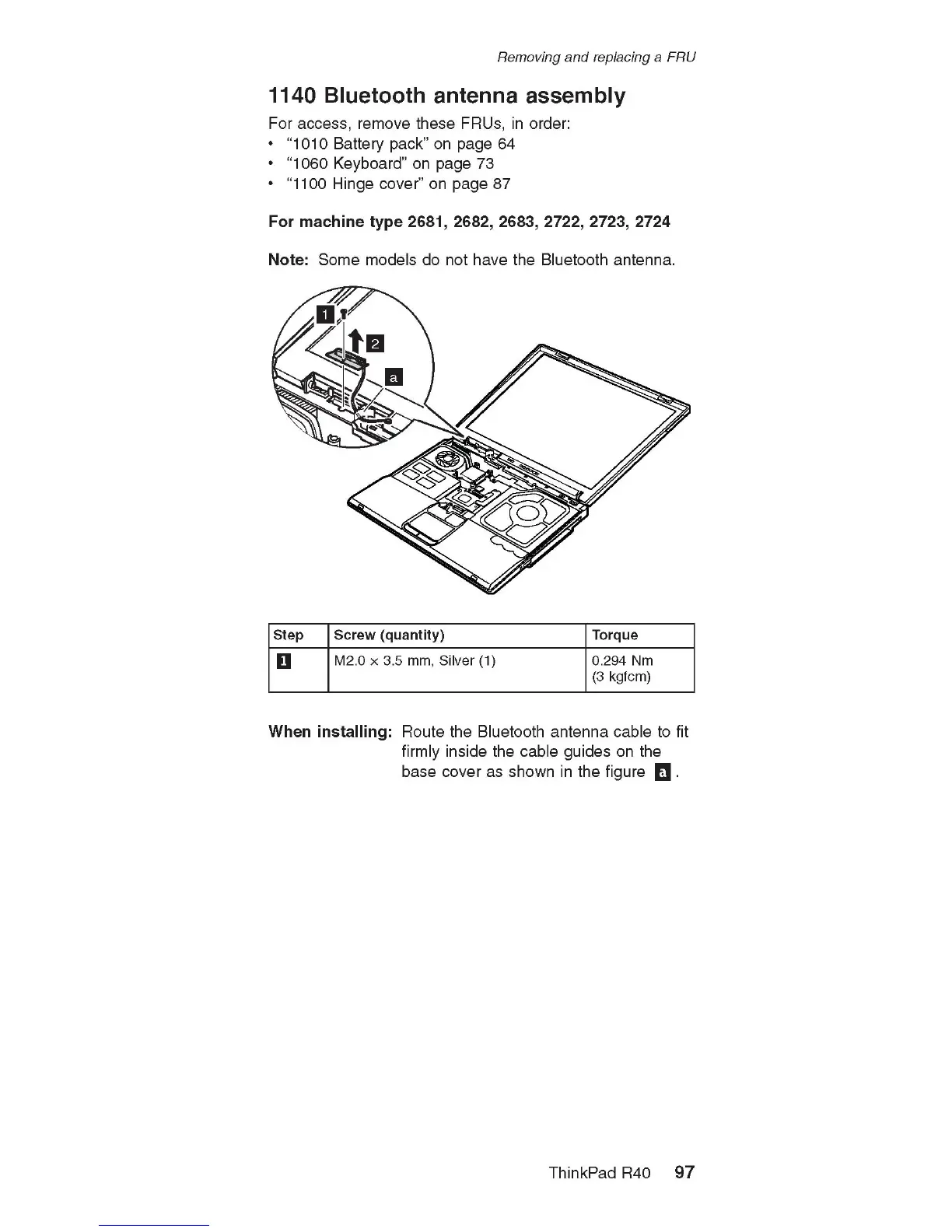

1140 Bluetooth antenna assembly
For access, remove these FRUs, in order:
• “ 1010 Battery pack” on page 64
• “ 1060 Keyboard” on page 73
• “ 1100 Hinge cover” on page 87
For m achine typ e 2681, 2682, 2683, 2722, 2723, 2724
Note: Som e models do not have the Bluetooth antenna.
Step Screw (quantity) Torque
□
M2.0 x 3.5 mm, Silver (1) 0.294 Nm
(3 kgfcm)
W hen in s tallin g : Route the Bluetooth antenna cable to fit
firmly inside the cable guides on the
base cover as shown in the figure 0 .
ThinkPad R40 9 7
