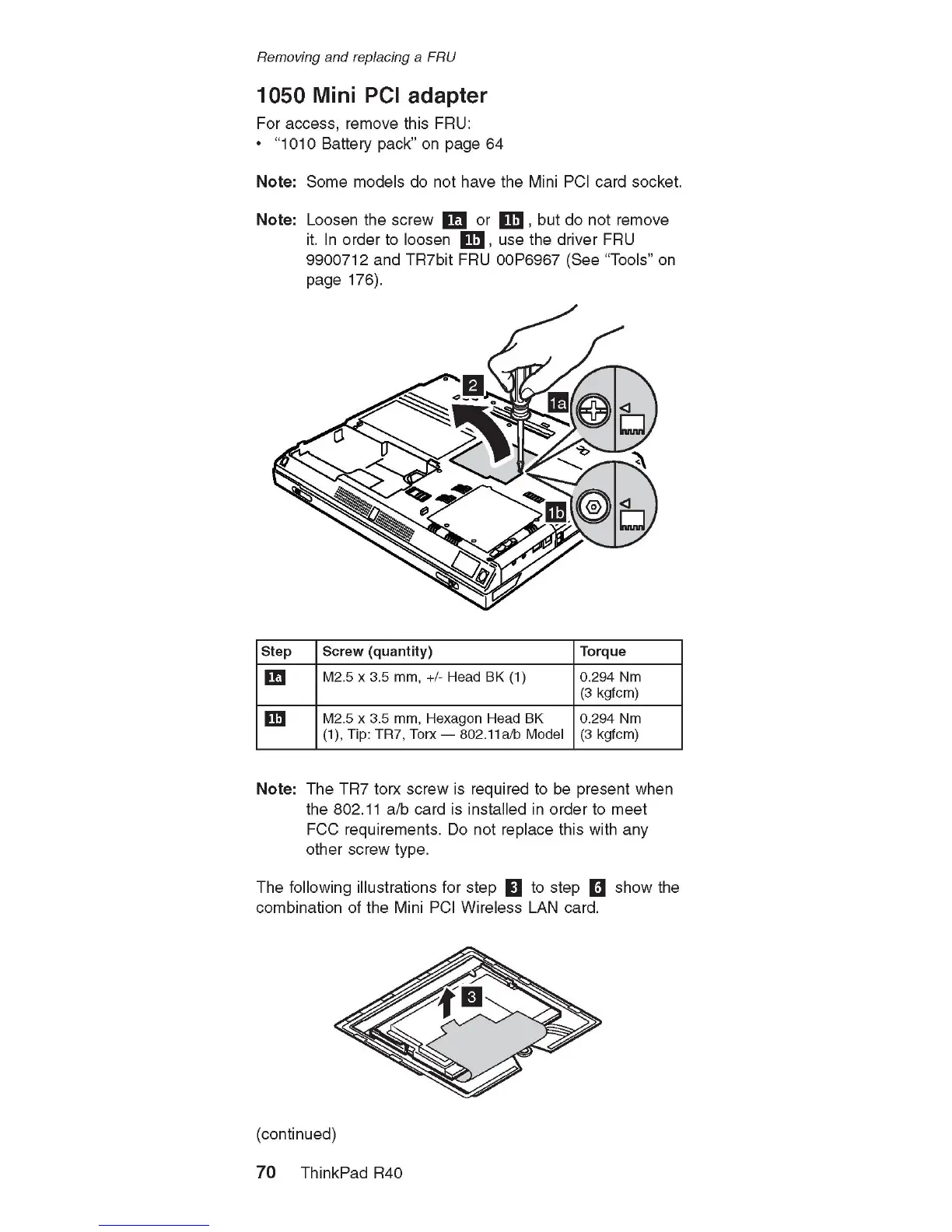

IBM ThinkPad R40 Hardware Maintenance Manual

Removing and replacing a FRU
1050 Mini PCI adapter
For access, remove this FRU:
• “ 1010 Battery pack” on page 64
Note: Som e models do not have the Mini PCI card socket.
Note: Loosen the screw 1331 or IQQI , but do not remove
it. In order to loosen |Q 3 , use the driver FRU
9900712 and TR7bit FRU 00P6967 (See “Tools” on
page 176).
Step Screw (quantity) Torque
E S I
M2.5 x 3.5 mm, +/- Head BK (1) 0.294 Nm
(3 kgfcm)
B 3
M2.5 x 3.5 mm, Hexagon Head BK
(1), Tip: TR7, Torx — 802.11a/b Model
0.294 Nm
(3 kgfcm)
Note: The TR7 torx screw is required to be present when
the 802.11 a/b card is installed in order to meet
FCC requirements. Do not replace this with any
other screw type.
The following illustrations for step Q to step Q show the
combination of the Mini PCI W ireless LAN card.
(continued)
7 0 ThinkPad R40
