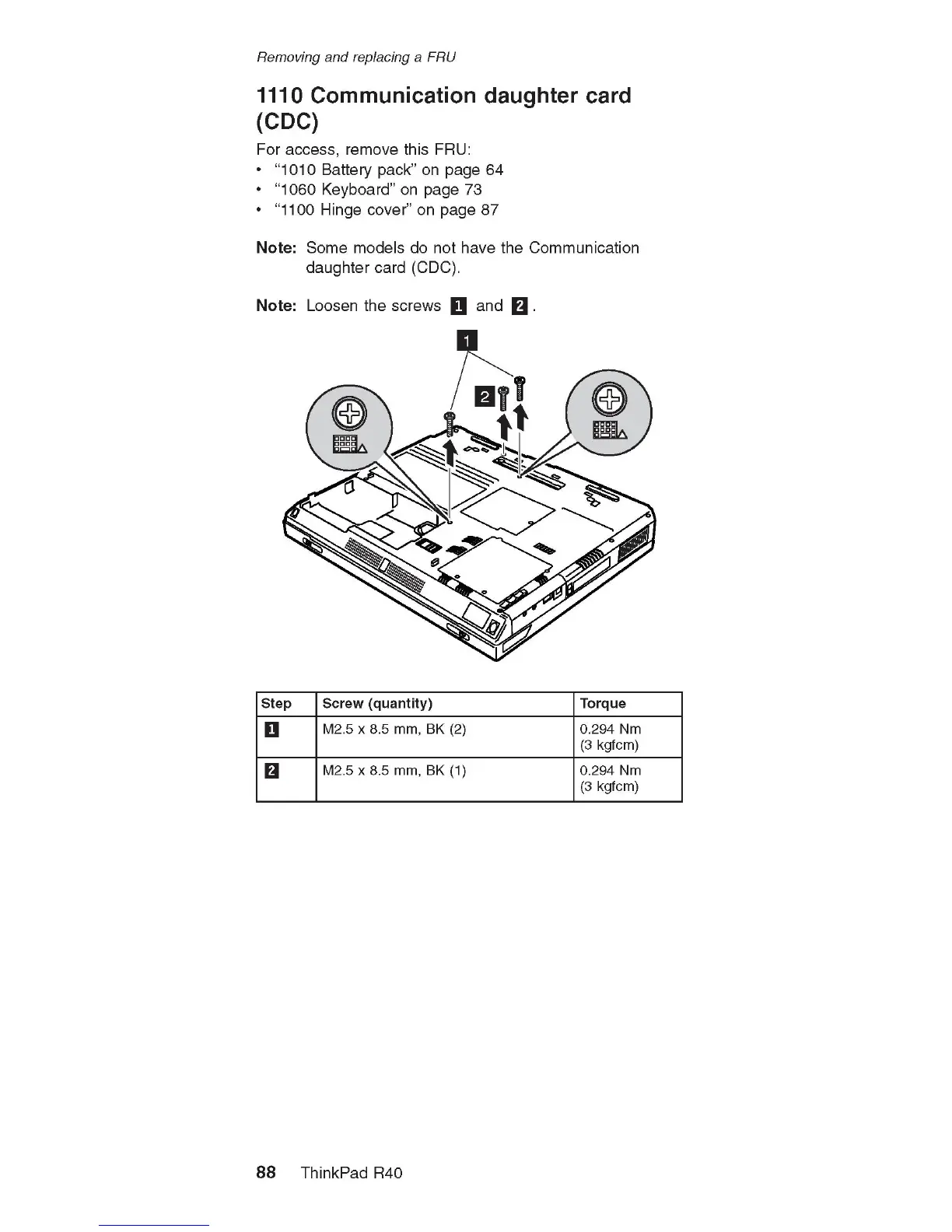

Removing and replacing a FRU
1110 Communication daughter card
(CDC)
For access, remove this FRU:
• “ 1010 Battery pack” on page 64
• “ 1060 Keyboard” on page 73
• “ 1100 Hinge cover” on page 87
Note: Som e models do not have the Communication
daughter card (CDC).
Note: Loosen the screws Q and Q .
Step Screw (quantity) Torque
□
M2.5 x 8.5 mm, BK (2) 0.294 Nm
(3 kgfcm)
121
M2.5 x 8.5 mm, BK (1) 0.294 Nm
(3 kgfcm)
8 8 ThinkPad R40
