IBM ThinkPad R40 - 1190 Hard-Disk Drive Slot

Removing and replacing a FRU

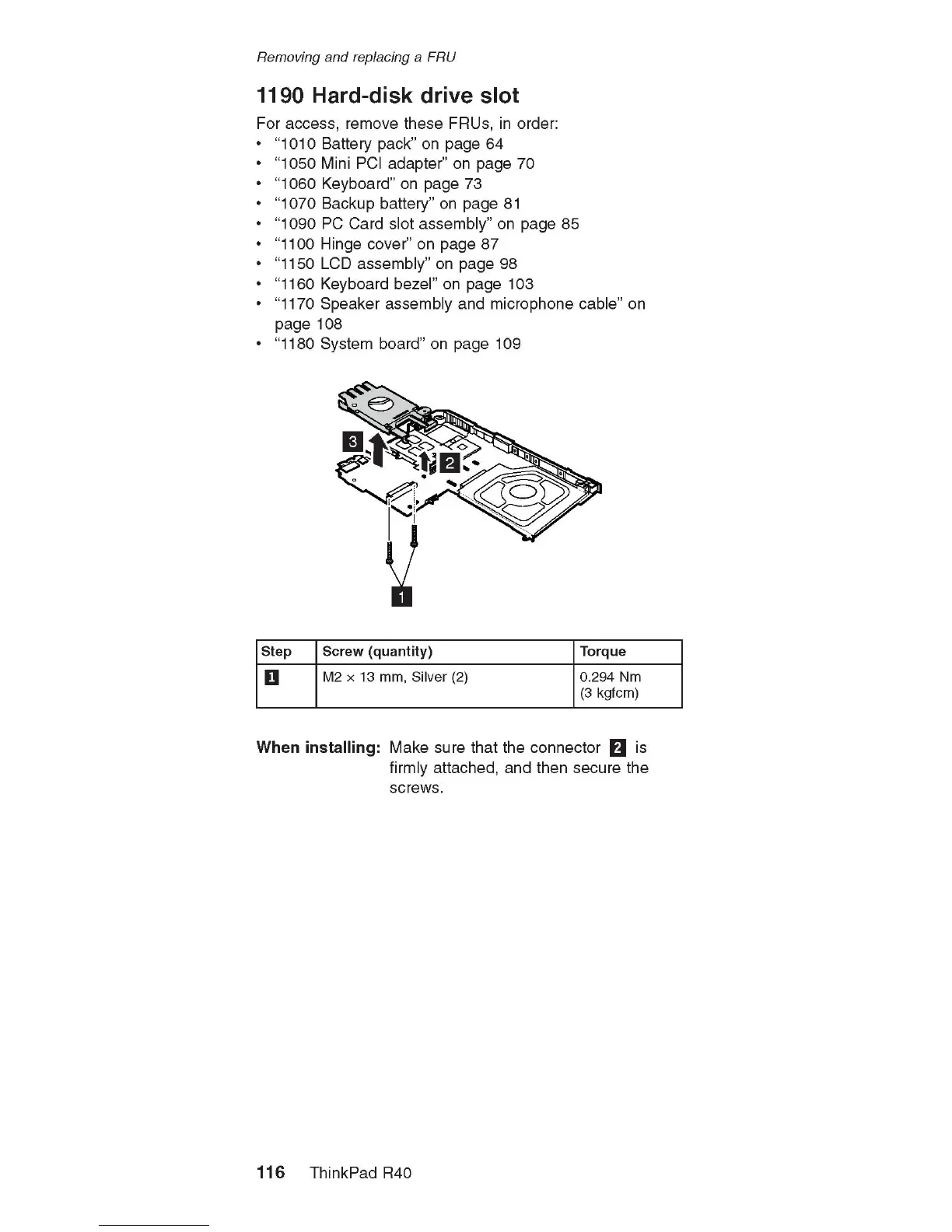

1190 Hard-disk drive slot
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1070 Backup battery” on page 81
• “1090 P C Card slot assembly” on page 85
• “1100 Hinge cover” on page 87
• “1150 L C D assembly” on page 98
• “1160 Keyboard bezel” on page 103
• “1170 Speaker assembly and microphone cable” on
page 108
• “1180 System board” on page 109
Step Screw (quantity) Torque
□
M2 x 13 mm, Silver (2) 0.294 Nm
(3 kgfcm)
W hen in s ta llin g : Mak e sure that the connector |2 is
firmly attached, and then secure the
screws.
116 ThinkPad R40
