Removing and replacing a FRU

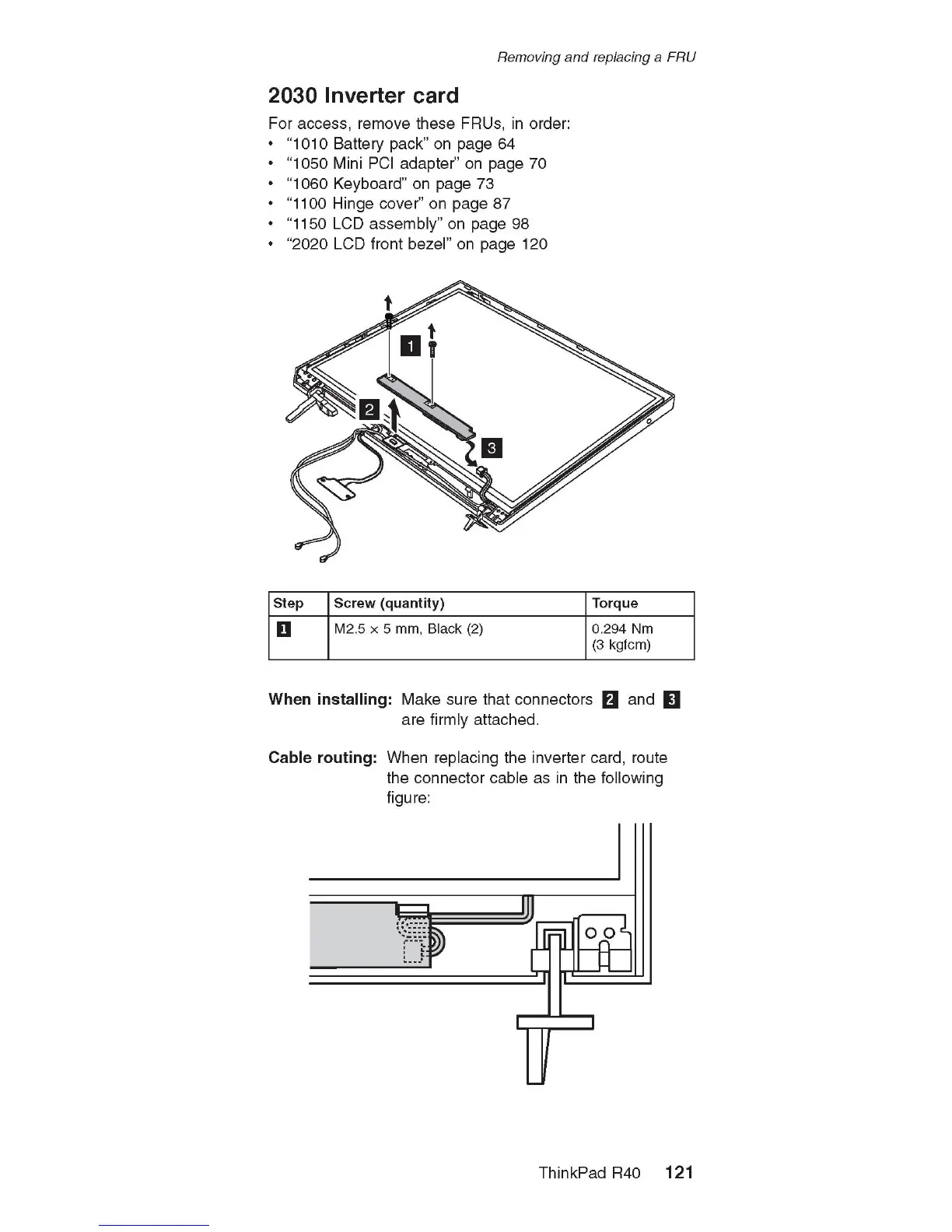

2030 Inverter card
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1100 Hinge cover” on page 87
• “1150 L C D assembly” on page 98
• “2020 L C D front bezel” on page 120
Step Screw (quantity) Torque
□
M2.5 x 5 mm, Black (2) 0.294 Nm
(3 kgfcm)
W hen in s tallin g : Mak e sure that connectors Q and Q
are firmly attached.
C a ble ro u tin g : W h e n replacing the inverter card, route
the connector cable as in the following
figure:
m
r"Y
i / r
:L
o
- f r l
i _______
r
ThinkPad R40 121
