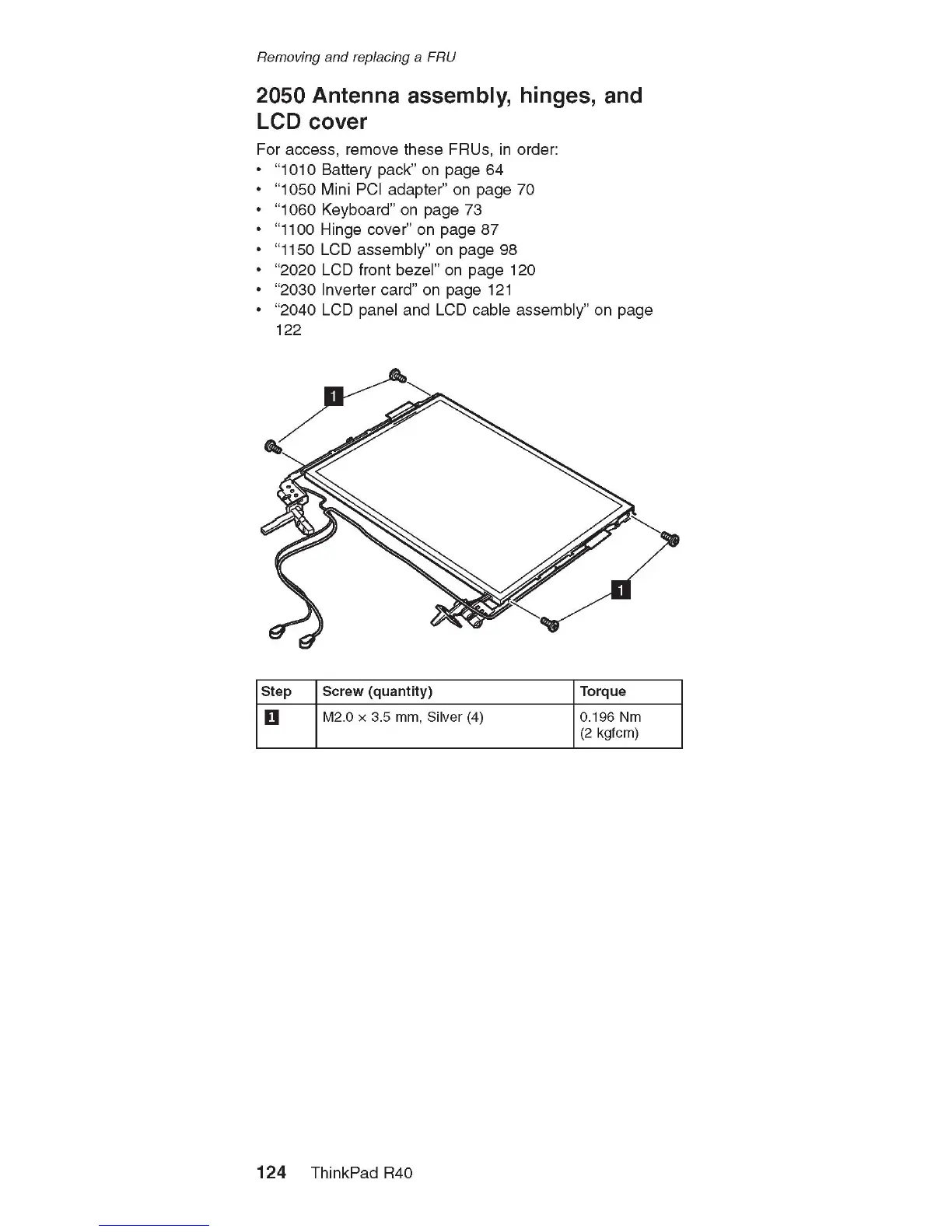

Removing and replacing a FRU
2050 Antenna assembly, hinges, and
LCD cover
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1100 Hinge cover” on page 87
• “1150 L C D assembly” on page 98
• “2020 L C D front bezel” on page 120
• “2030 Inverter card” on page 121
• “2040 L C D panel and L C D cable assembly” on page
122
Step Screw (quantity) Torque
□
M2.0 x 3.5 mm, Silver (4) 0.196 Nm
(2 kgfcm)
1 2 4 ThinkPad R40
