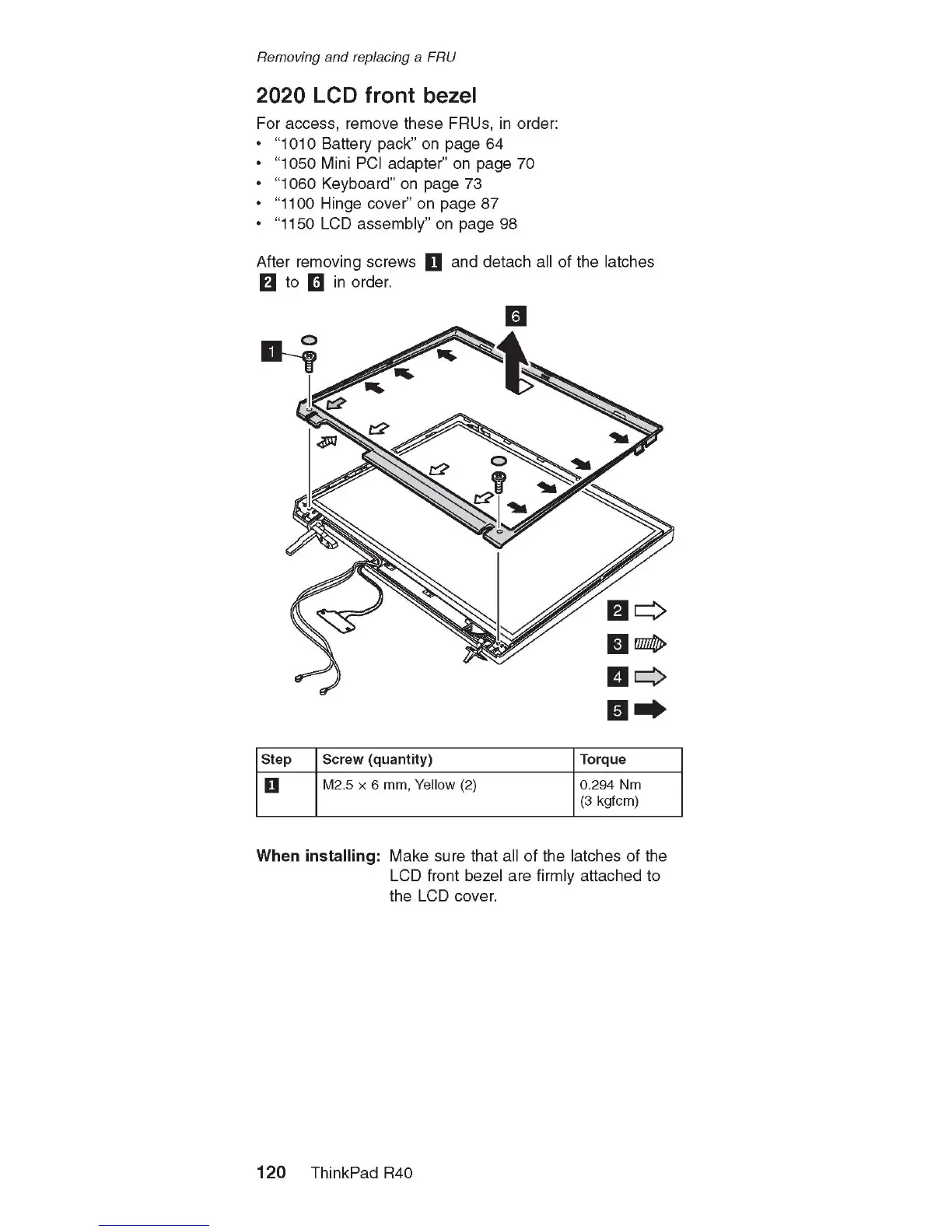

Removing and replacing a FRU
2020 LCD front bezel
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1100 Hinge cover” on page 87
• “1150 L C D assembly” on page 98
After removing screws Q and detach all of the latches
HI to Q in order.
Step Screw (quantity) Torque
□
M2.5 x 6 mm, Yellow (2) 0.294 Nm
(3 kgfcm)
W hen in s ta llin g : Mak e sure that all of the latches of the
L C D front bezel are firmly attached to
the L C D cover
120 ThinkPad R40
