Removing and replacing a FRU

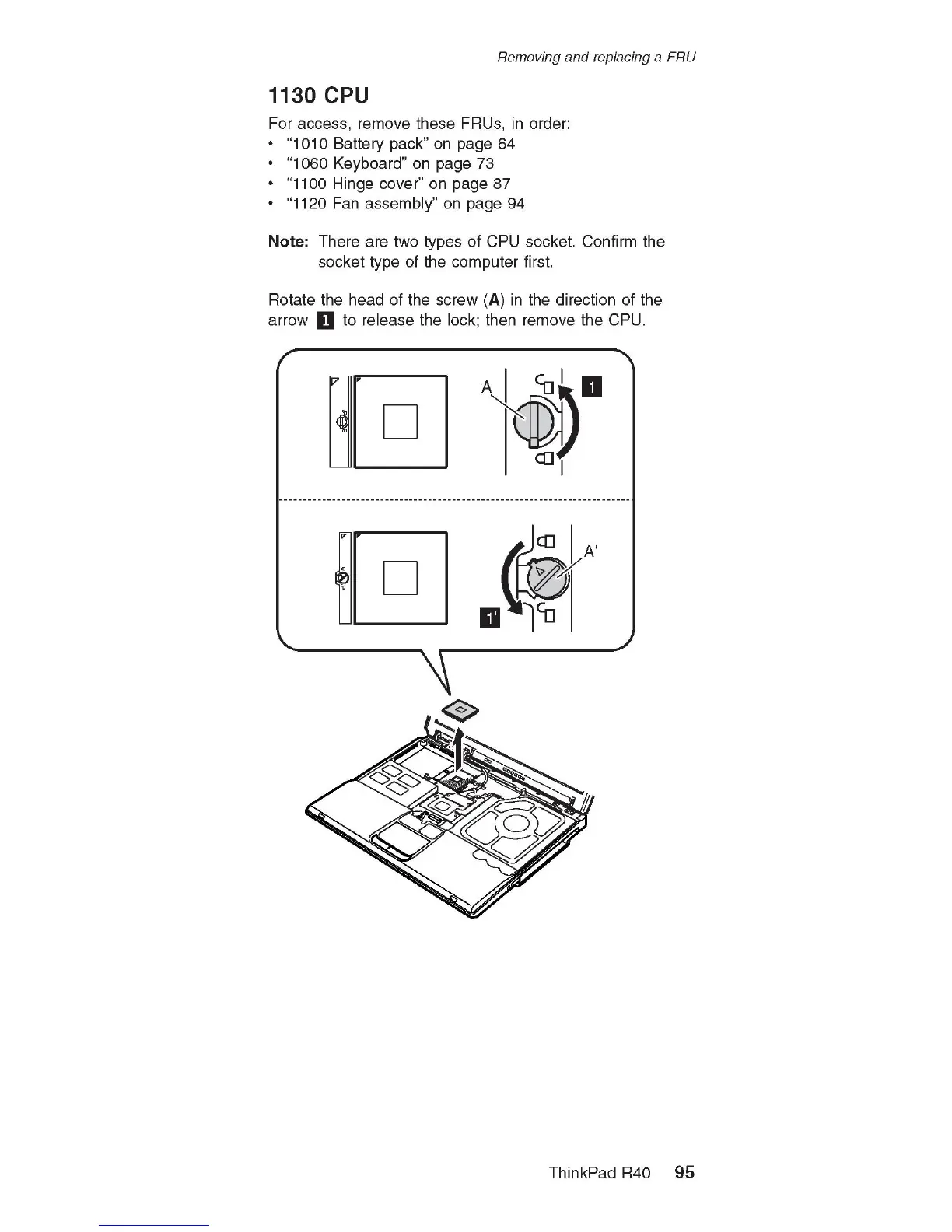

1130 CPU
For access, remove these FRUs, in order:
• “ 1010 Battery pack” on page 64
• “ 1060 Keyboard” on page 73
• “ 1100 Hinge cover” on page 87
• “ 1120 Fan assembly” on page 94
N o te : There are two types of CPU socket. Confirm the
socket type of the computer first.
Rotate the head of the screw (A) in the direction of the
arrow Q to release the lock; then remove the CPU.
ThinkPad R40 9 5
