Removing and replacing a FRU

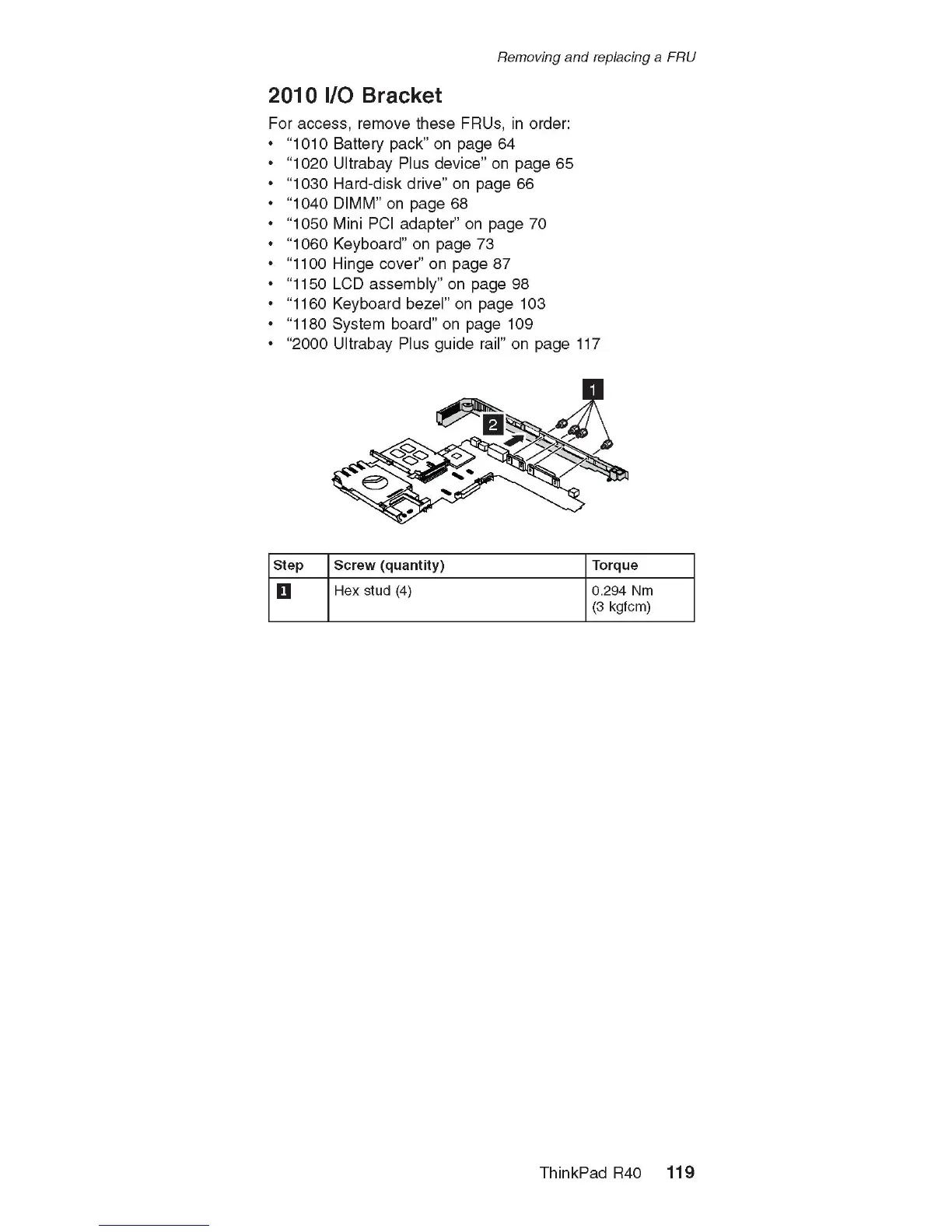

2010 I/O Bracket
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1020 Ultrabay Plus device” on page 65
• “1030 Hard-disk drive” on page 66
• “1040 D I M M ” on page 68
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1100 Hinge cover” on page 87
• “1150 L C D assembly” on page 98
• “1160 Keyboard bezel” on page 103
• “1180 System board” on page 109
• “2000 Ultrabay Plus guide rail” on page 117
Step Screw (quantity) Torque
□
Hex stud (4) 0.294 Nm
(3 kgfcm)
ThinkPad R40 119
