Removing and replacing a FRU

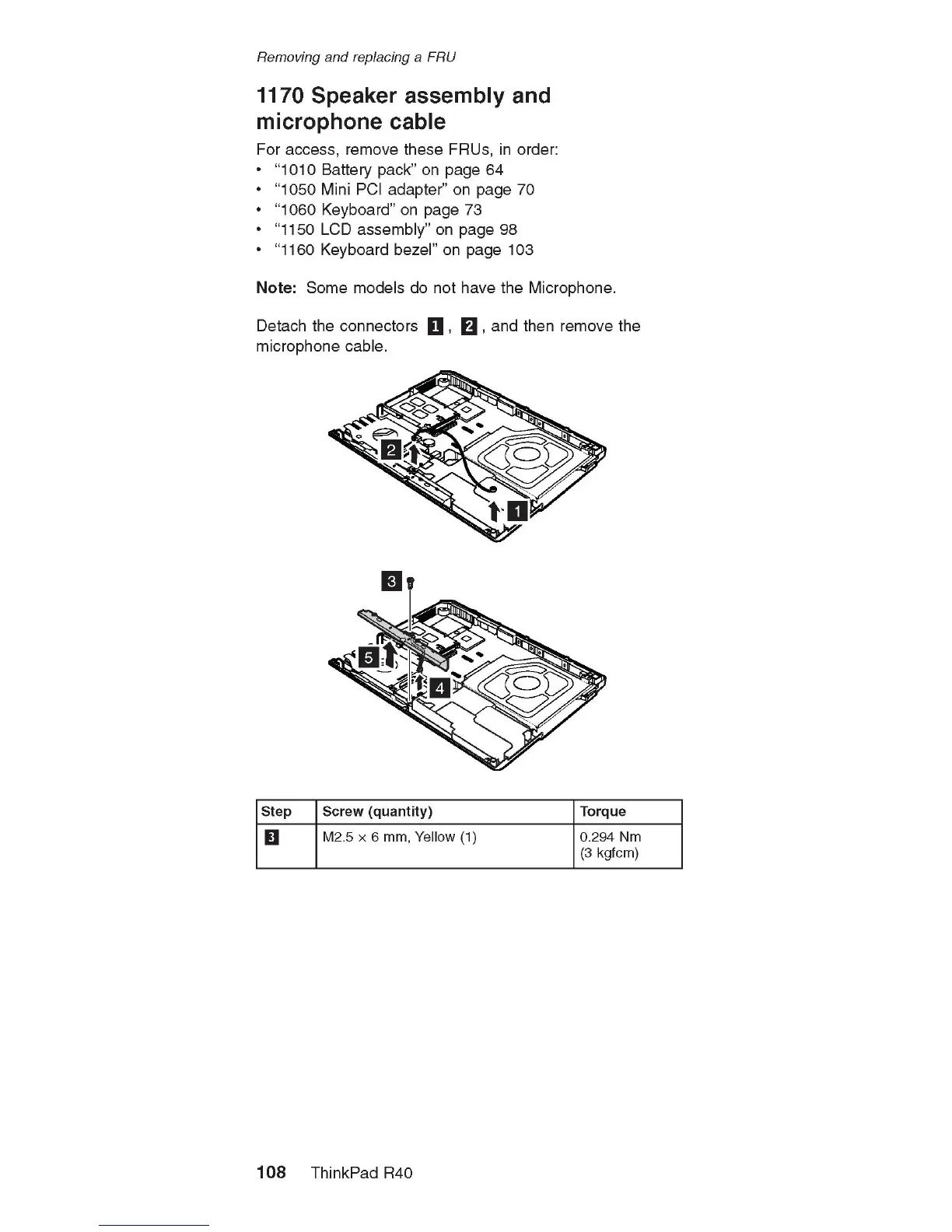

1170 Speaker assembly and
microphone cable
For access, remove these FRUs, in order:
• “1010 Battery pack” on page 64
• “1050 Mini PCI adapter” on page 70
• “1060 Keyboard” on page 73
• “1150 L C D assembly” on page 98
• “1160 Keyboard bezel” on page 103
N o te : S o m e models do not have the Microphone.
Detach the connectors Q , Q , and then remove the
microphone cable.
Step Screw (quantity) Torque
□
M2.5 x 6 mm, Yellow (1) 0.294 Nm
(3 kgfcm)
108 ThinkPad R40
