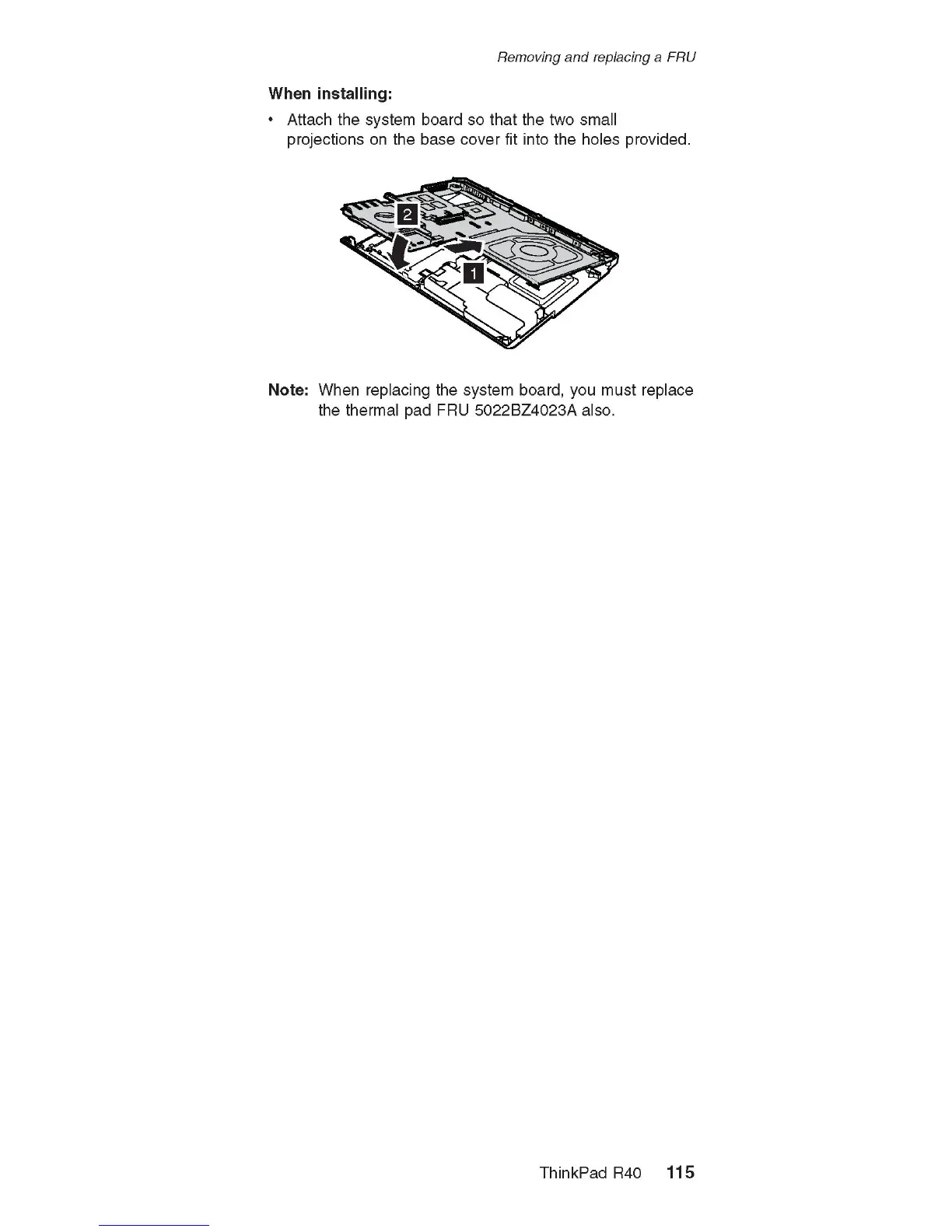

Removing and replacing a FRU

• Attach the system board so that the two small

projections on the base cover fit into the holes provided.

W hen in s ta llin g :

Note: W h e n replacing the system board, you must replace

the thermal pad F R U 5 022BZ40 23A also.
