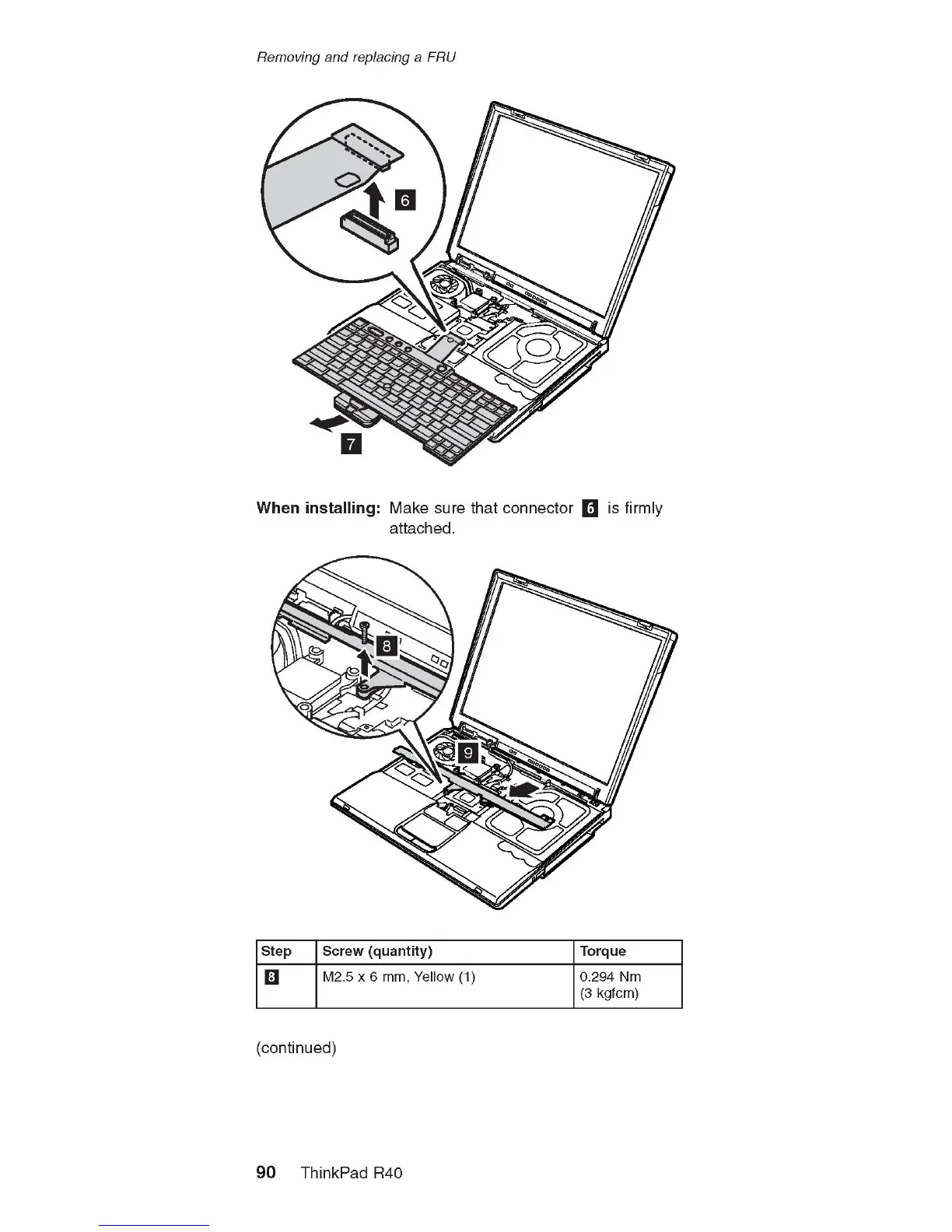

Removing and replacing a FRU

W hen in s ta llin g : Make sure that connector Q is firmly

attached.

Step Screw (quantity) Torque

H I

M2.5 x 6 mm, Yellow (1) 0.294 Nm

(3 kgfcm)

(continued)

9 0 ThinkPad R40
