on page 9 for the location of this connector on the system board. After you install
the Remote Supervisor Adapter II SlimLine, the systems-management Ethernet port
on the rear of the server is active.
To install a Remote Supervisor Adapter II SlimLine, complete the following steps:
1. Read the safety information beginning on page vii, and “Installation guidelines”
on page 47.
2. Turn off the server and peripheral devices, and disconnect the power cords
and all external cables.
3. Lay the server on its side.
4. Unlock the side cover.
5. Remove the side cover (see “Removing the side cover” on page 52.

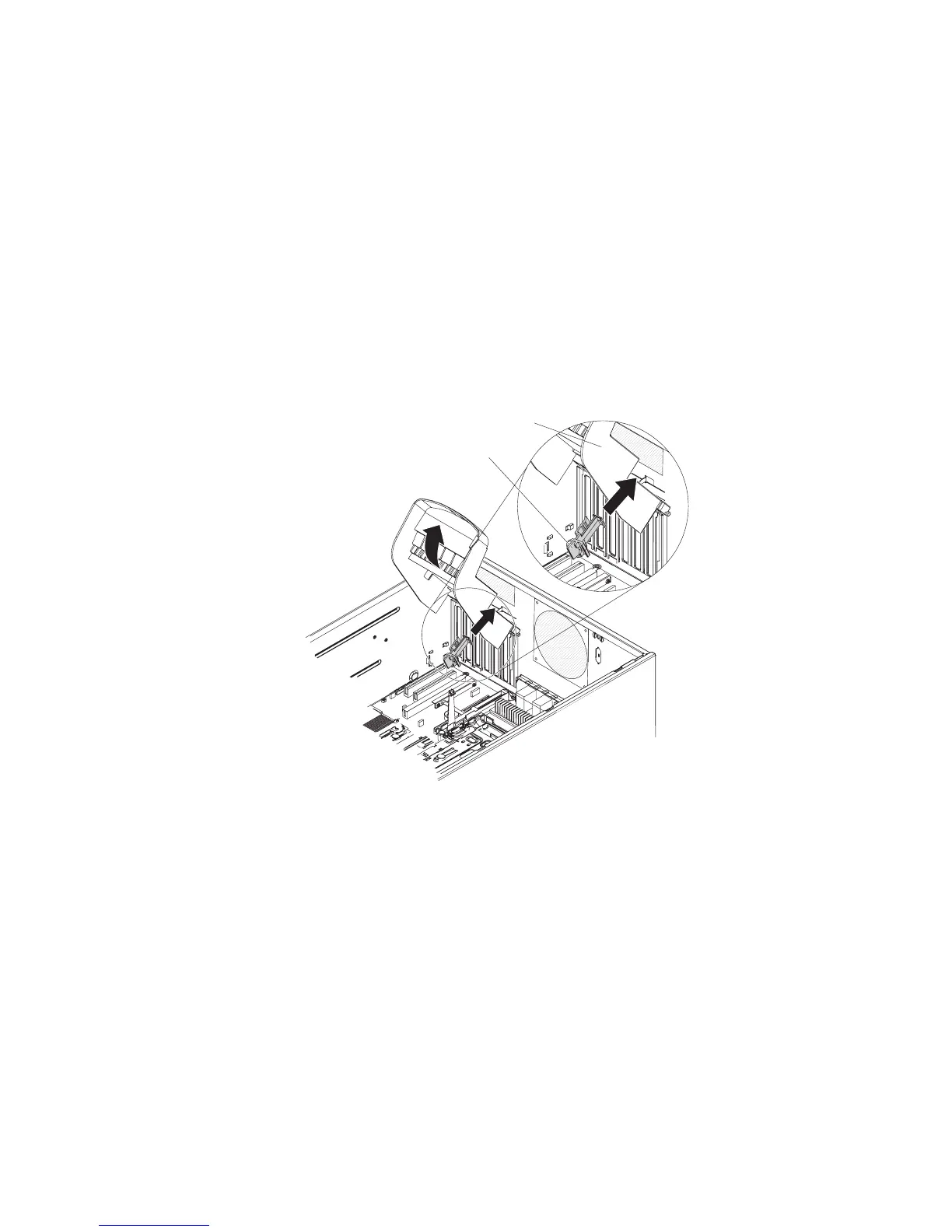

6. Open the rear adapter-retention bracket and install the Remote Supervisor
Adapter II SlimLine retention tab on the bracket by clipping it onto the rear
adapter-retention bracket.
Adapter retention bracket
Remote Supervisor Adapter II
SlimLine retention tab
7. Carefully grasp the Remote Supervisor Adapter II SlimLine by its top edge or
upper corners, and align it with the Remote Supervisor Adapter II SlimLine
guide and the connector on the system board.
Attention: Incomplete insertion might cause damage to the system board or
the adapter.
Chapter 4. Removing and replacing server components 103

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
