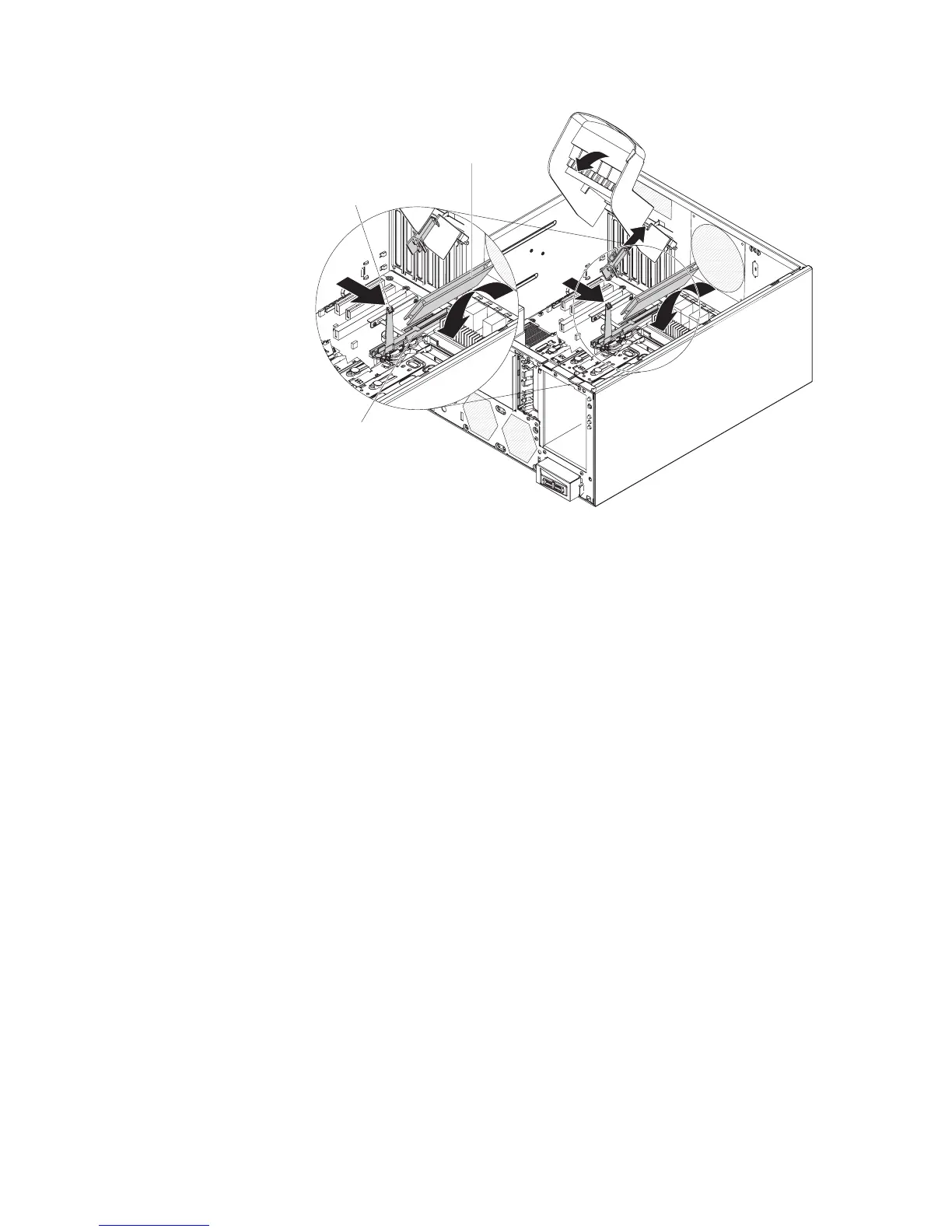

Remote Supervisor II
SlimLine adapter
support bracket
Remote Supervisor II
SlimLine adapter
retainer clip
Remote Supervisor II
SlimLine adapter
8. Press the Remote Supervisor Adapter II SlimLine firmly into the connector and
under the retention clip on the Remote Supervisor Adapter II SlimLine support
bracket.
9. Close the rear adapter-retention bracket.
10. Install the side cover (see “Installing the side cover” on page 53).
11. Lock the side cover.
12. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
