IBM x3200 M2 Type 4367 User Manual

Removing a CD or DVD drive
To remove a CD or DVD drive, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 52).
4. Remove the lower bezel (see “Removing the lower bezel” on page 54).
5. Remove the upper bezel (see “Removing the upper bezel” on page 56).
6. Disconnect the power and signal cables from the drive that is to be removed.

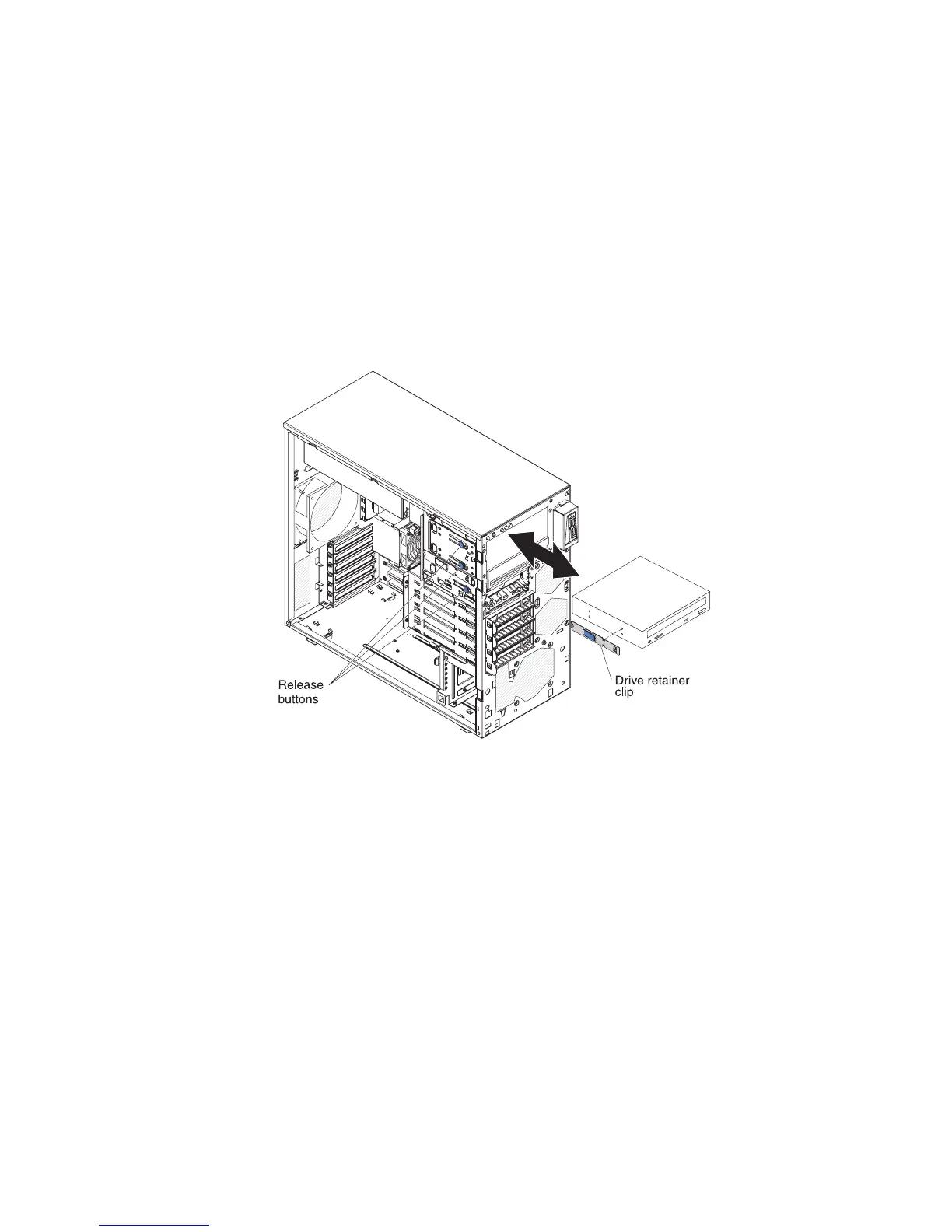

7. Press and hold the blue release button on the side of the bay to release the
drive; then, pull the drive out of the front of the server.
8. Remove the drive retainer clip from the side of the drive. Save the clip to use
when you install the replacement drive.
9. If you are instructed to return the drive, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
62 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
