IBM x3850 X5 7145 User Manual

Memory-card DIMM connectors

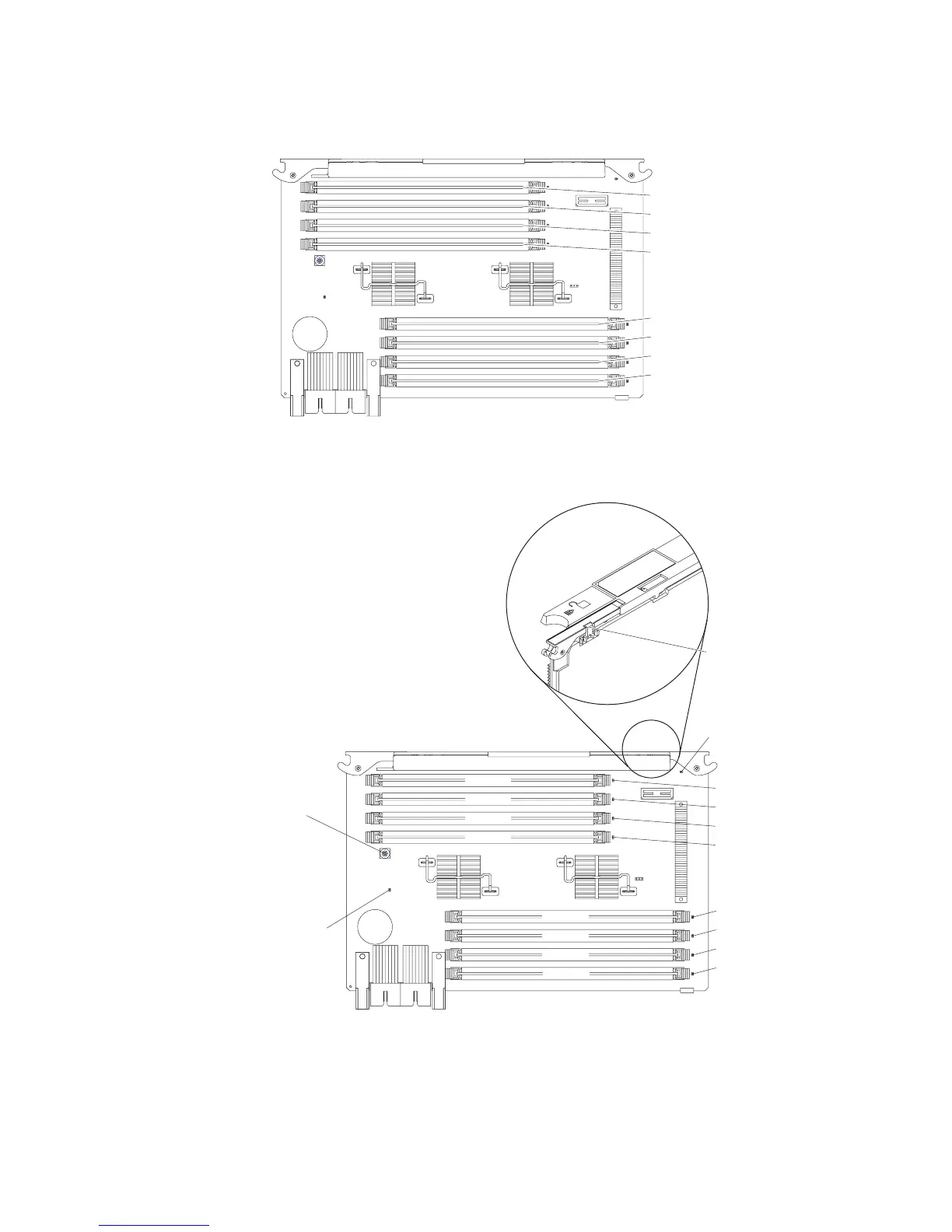

The following illustration shows the DIMM connectors on a memory card.
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
Memory-card LEDs
The following illustration shows the LEDs on a memory card.
DIMM 1 error LED
DIMM 2 error LED
DIMM 3 error LED
DIMM 4 error LED
DIMM 5 error LED
DIMM 6 error LED
DIMM 7 error LED
DIMM 8 error LED
Memory
card only
error LED
Light path
diagnostics
button
Light path
diagnostics
button
power LED
DIMM 5
DIMM 6
DIMM 7
DIMM 8
DIMM 1
DIMM 2
DIMM 3
DIMM 4
Memory
card/DIMM
error LED
Chapter 2. Installing optional devices 21

IBM x3850 X5 7145 Specifications

General

Processor	Intel Xeon E7-4800 series
Form Factor	4U Rack
Network Interface	Integrated dual-port Gigabit Ethernet
Chipset	Intel 7500
Memory Type	DDR3
Max Processors	4
Storage	Up to 8 HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Memory	Up to 1TB DDR3
