Removing the bezel
Note: You do not have to remove the top cover before you remove the bezel.
To remove the bezel, complete the following steps:
1. Read the safety information that begins on page v and “Working inside the
server with the power on” on page 27.

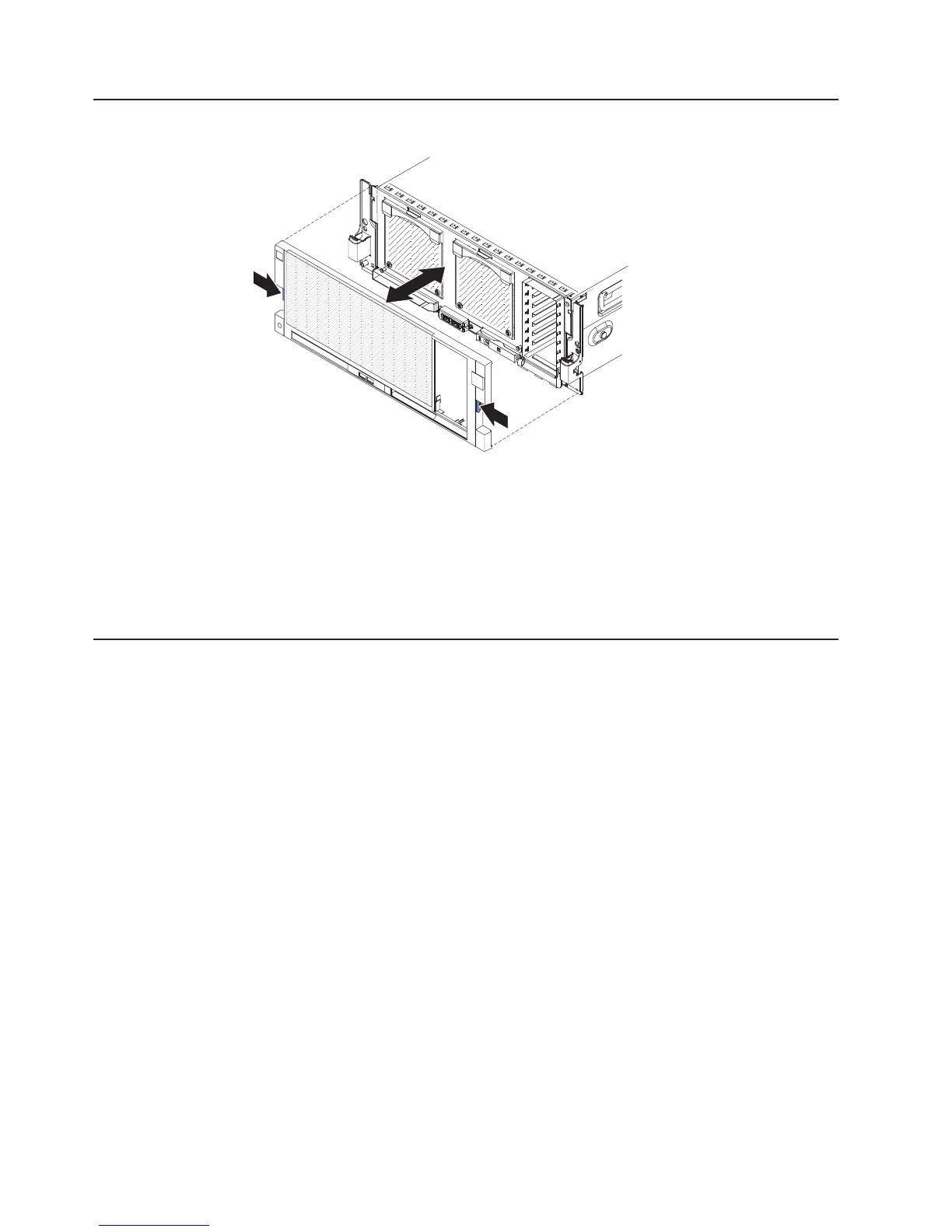

2. Press on the bezel retention tabs on the sides of the bezel and pull the bezel
away from the server.
Installing an adapter
The following notes describe the types of adapters that the server supports and
other information that you must consider when you install an adapter:
v An Emulex 10 GbE Custom Adapter for System x comes installed in PCI Express
slot 7 in some models.
v Locate the documentation that comes with the adapter and follow those
instructions in addition to the instructions in this section. If you must change the
switch setting or jumper settings on the adapter, follow the instructions that come
with the adapter.
v Avoid touching the components and gold-edge connectors on the adapter.
v If you are installing a ServeRAID adapter with a battery installed on the adapter,
you must install the adapter in a full length expansion slot and you must leave an
empty expansion slot next to the slot in which you install the ServeRAID adapter.
v The server scans devices and PCI Express slots to assign system resources in
the following order: ICH10 RAID, DVD, USB, I/O Hub 1, integrated Ethernet
controller, integrated SAS controller, PCI Express slots 5 through 7, I/O Hub 2,
and then PCI Express slots 1 through 4. If you have not changed the default
startup sequence, the server starts the devices in the following order: DVD drive,
USB-attached diskette drive, hard disk drive 0, and network devices.
Note: To change the startup sequence, start the Setup utility and select Start
Options from the main menu. See “Using the Setup utility” on page 62 for details
about using the Setup utility.
v The PCI Express 2.0 bus configuration is as follows:
34 IBM System x3850 X5 and x3950 X5 Types 7145 and 7146: Installation and User’s Guide
