IBM x3850 X5 7145 User Manual

I/O-board connectors

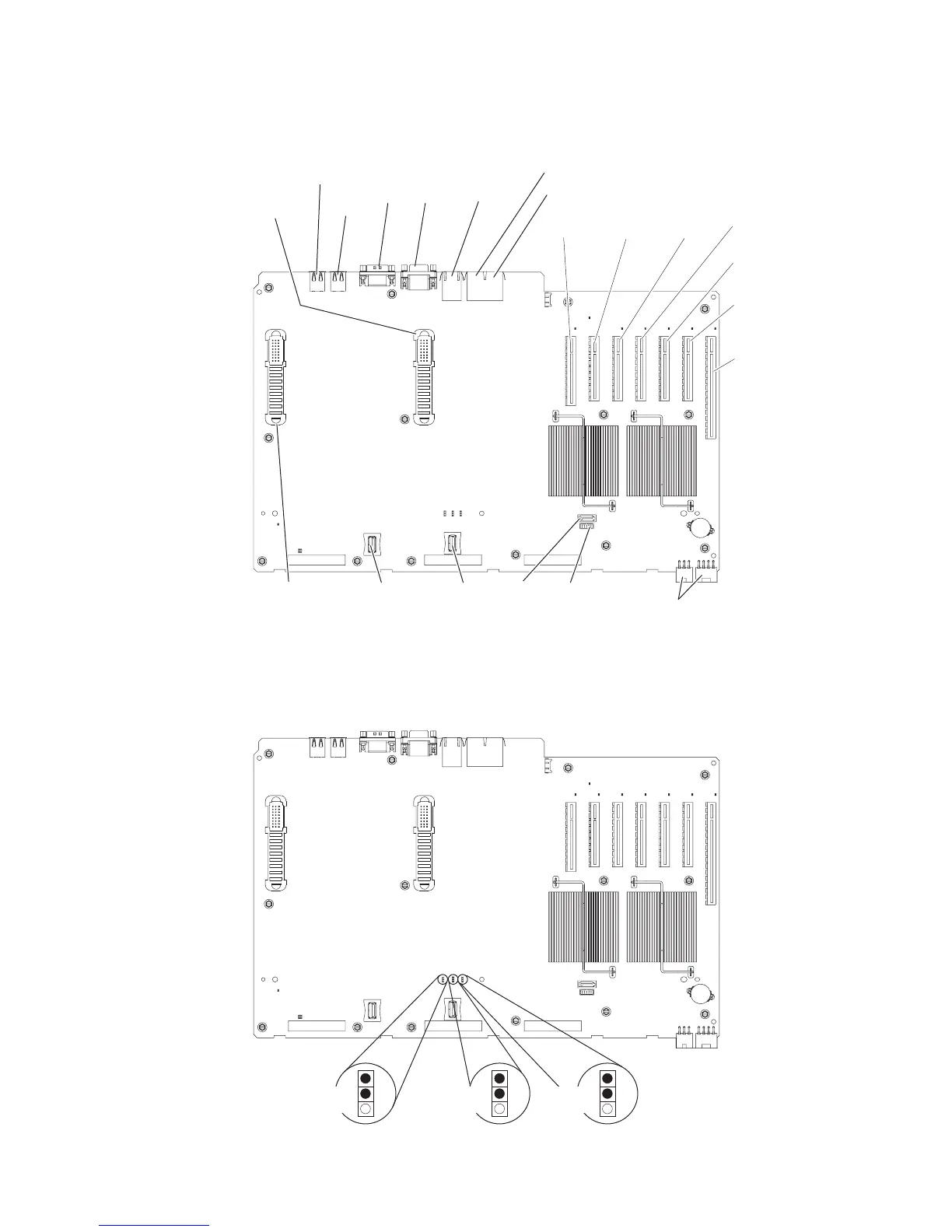

The following illustration shows the connectors on the I/O board.
PCIe2 x8
slot 7 slot 6
PCIe2 x8
slot 5
PCIe2 x8
slot 4
PCIe2 x8
slot 1
PCIe2 x16
slot 3
PCIe2 x8
slot 2
PCIe2 x8
(x4 electrically)
Ethernet 1
Ethernet 2
VideoSerialUSB
6 - 7
USB
4 - 5
Internal
USB
Internal
USB
SATA
DVD
Front
USB
PCIe
auxiliary
power
Power
supply 1
Power
supply 2
System
management
Ethernet
I/O-board jumpers
The following illustration shows the jumpers on the I/O board.
Wake on LAN
bypass (J31)
1
2
3
Password
override (J29)
1
2
3
1
2
3
Boot
recovery
(J22)
24 IBM System x3850 X5 and x3950 X5 Types 7145 and 7146: Installation and User’s Guide

IBM x3850 X5 7145 Specifications

General

Processor	Intel Xeon E7-4800 series
Form Factor	4U Rack
Network Interface	Integrated dual-port Gigabit Ethernet
Chipset	Intel 7500
Memory Type	DDR3
Max Processors	4
Storage	Up to 8 HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Memory	Up to 1TB DDR3
