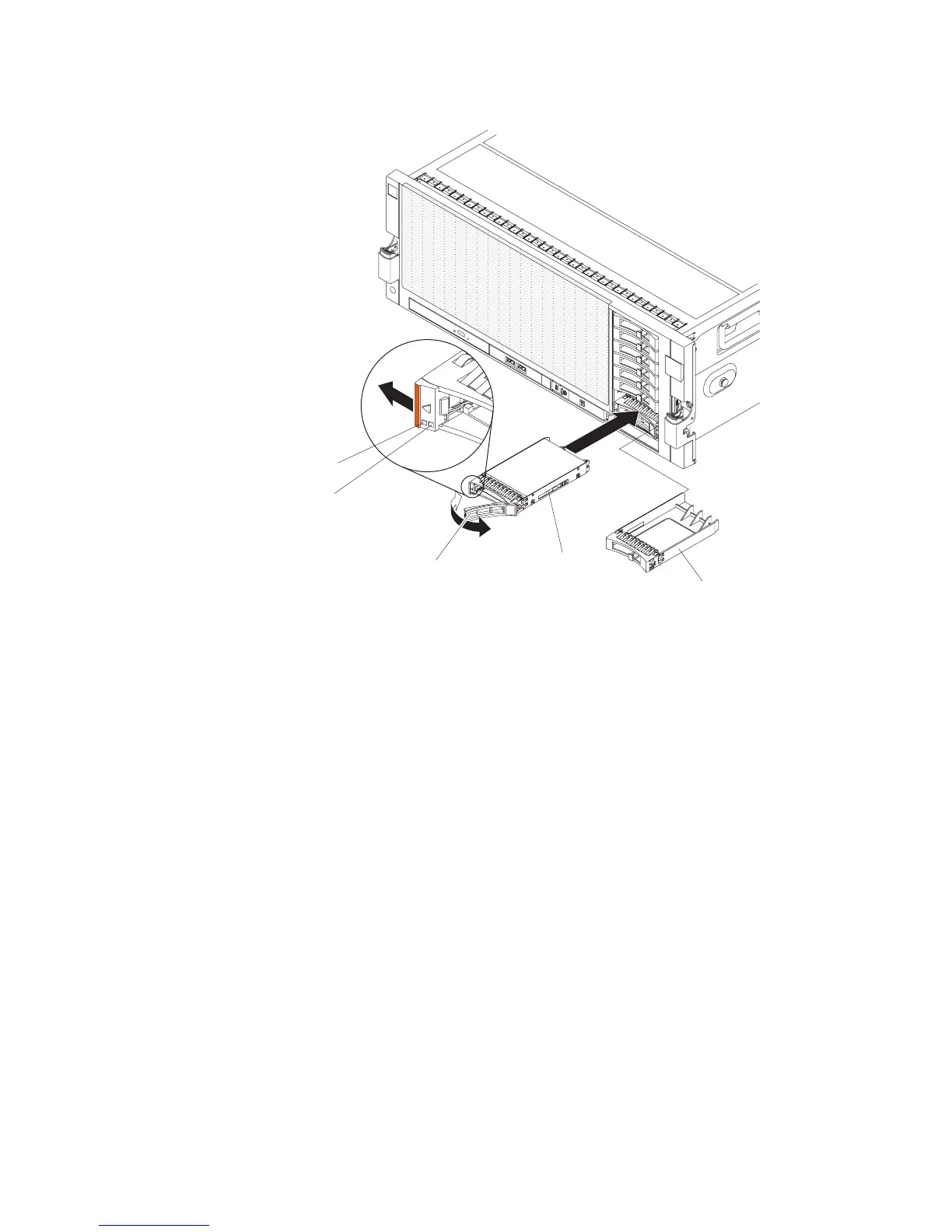

The following illustration shows how to install a hot-swap hard disk drive.
Hard disk
drive
assembly
Filler panel
Drive handle
(in open position)
Activity LED
Status LED
To install a hot-swap hard disk drive, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 25.
2. Remove the filler panel from one of the empty hot-swap bays.
Note: When you install a drive in bays 4 through 7, you must first install a hard
disk drive backplane.
3. Touch the static-protective package that contains the hard disk drive to any
unpainted surface on the outside of the server; then, remove the hard disk drive
from the package.
4. Make sure that the drive handle is open; then, install the hard disk drive into the
hot-swap bay.
Note: When you turn on the server, check the hard disk drive status LEDs to make
sure that the hard disk drive is operating correctly. If the amber hard disk drive
status LED for a drive is lit continuously, that drive is faulty and must be replaced. If
the green hard disk drive activity LED is flashing, the drive is being accessed.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 59.
38 IBM System x3850 X5 and x3950 X5 Types 7145 and 7146: Installation and User’s Guide

IBM x3850 X5 7145 Specifications

General

Processor	Intel Xeon E7-4800 series
Form Factor	4U Rack
Network Interface	Integrated dual-port Gigabit Ethernet
Chipset	Intel 7500
Memory Type	DDR3
Max Processors	4
Storage	Up to 8 HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Memory	Up to 1TB DDR3
