SAS power and
configuration cables
Release tab
Backplane
carrier
Alignment
pins

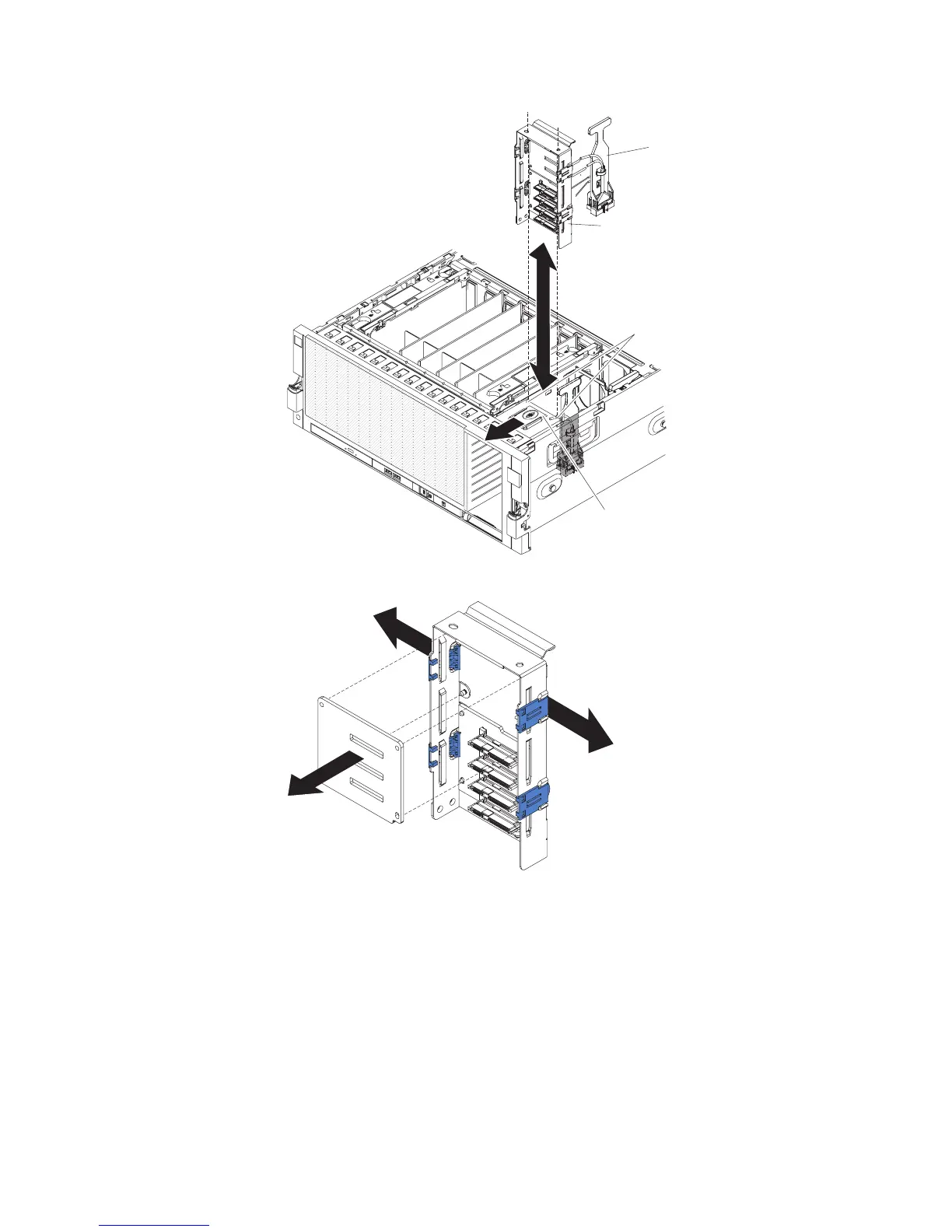

11. Remove the backplane filler from the backplane carrier.
a. Push the tabs on the backplane outward.
b. Pull the filler out of the backplane carrier.
12. Orient and install the new backplane into the backplane carrier.
