IBM x3850 X5 7145 - Page 61

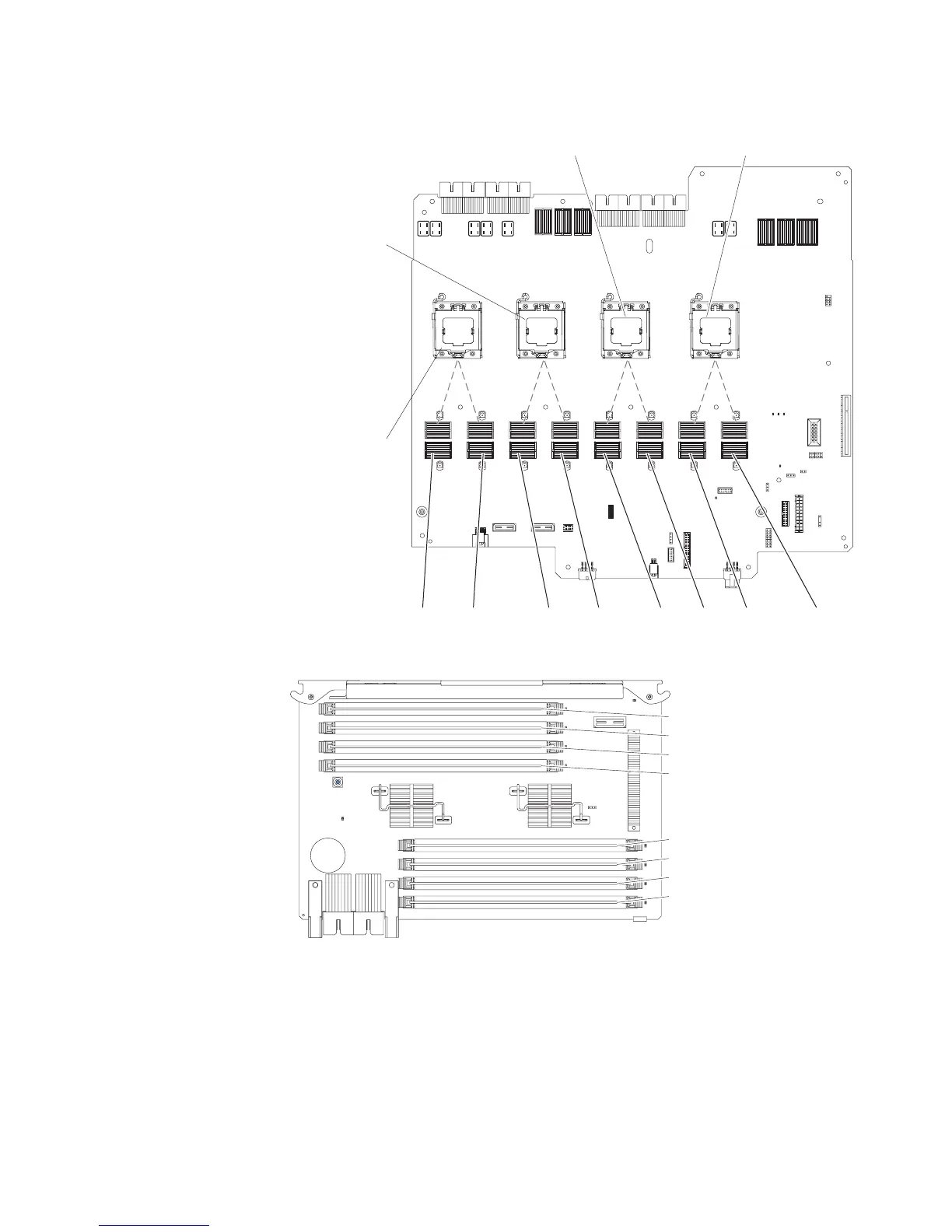

The following illustration shows the locations of the memory-card connectors.
Memory
card 1
Memory
card 2
Memory
card 3
Memory
card 4
Memory
card 5
Memory
card 6
Memory
card 7
Memory
card 8
Microprocessor 1
connector
Microprocessor 2
connector
Microprocessor 3
connector
Microprocessor 4
connector
v The following illustration shows the DIMM connectors on a memory card.
DIMM 1
DIMM 2
DIMM 3
DIMM 4
DIMM 5
DIMM 6
DIMM 7
DIMM 8
Chapter 2. Installing optional devices 47
