IBM x3850 X5 7145 User Manual

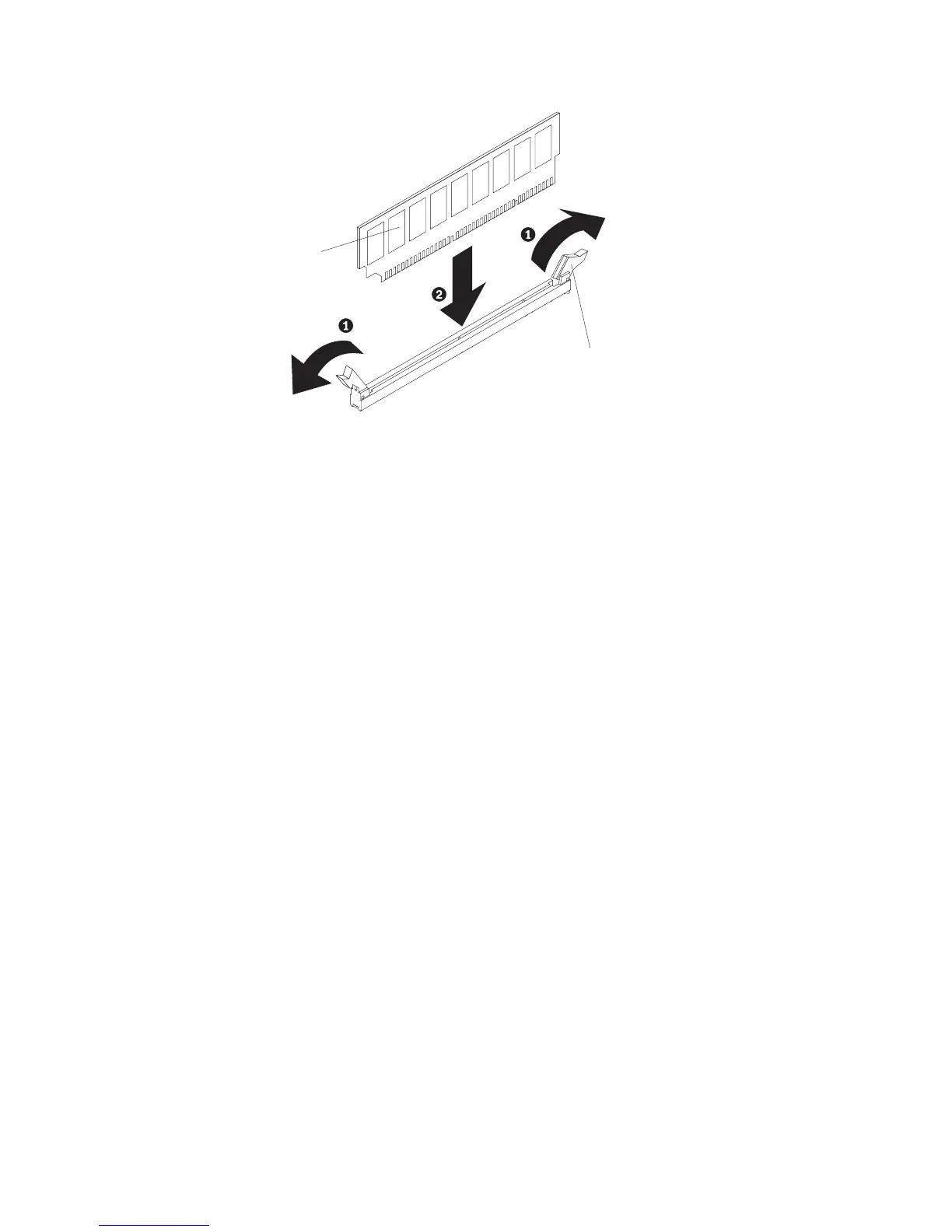

DIMM
Retaining
clip
9. Insert the DIMM into the connector by aligning the edges of the DIMM with the
slots at the ends of the DIMM connector. Firmly press the DIMM straight down
into the connector 2 by applying pressure on both ends of the DIMM
simultaneously. The retaining clips snap into the locked position when the
DIMM is seated in the connector.
Note: If there is a gap between the DIMM and the retaining clips, the DIMM
has not been correctly inserted; open the retaining clips, remove the DIMM,
and then reinsert it.
54 IBM System x3850 X5 and x3950 X5 Types 7145 and 7146: Installation and User’s Guide

IBM x3850 X5 7145 Specifications

General

Processor	Intel Xeon E7-4800 series
Form Factor	4U Rack
Network Interface	Integrated dual-port Gigabit Ethernet
Chipset	Intel 7500
Memory Type	DDR3
Max Processors	4
Storage	Up to 8 HDDs or SSDs
RAID Support	RAID 0, 1, 5, 6, 10
Memory	Up to 1TB DDR3
