ICM Controls SC2201 User Manual

16
SimpleComfort
®

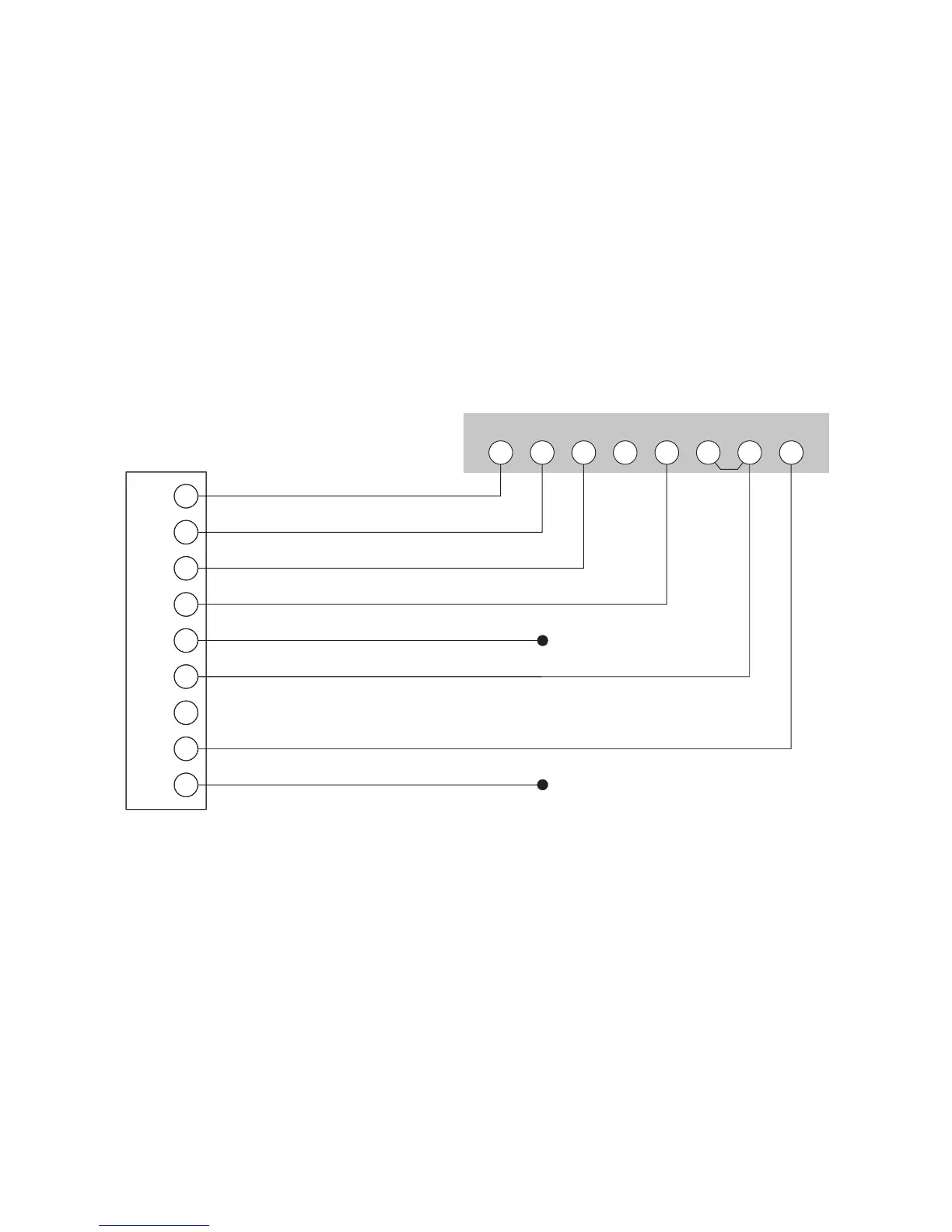

2201 Electronic Thermostat Conversion to:
Goodman, Janitrol, Trane/American Standard Heat Pump Systems
SimpleComfort
®
2201
CW2EGBOY1R
Goodman, Janitrol, Trane/American Standard
Low Voltage Terminal Board
R
Y
O
G
X2
W-U
B
T
24 VAC, Return
Compressor Contactor
Reversing Valve (Cooling Mode)
Fan Contactor Circuit
2nd Stage Heating Circuit
24 VAC, Common
Note 1: E and W2 terminals jumpered at thermostat.
Note 2: X2 terminal on Goodman, etc. capped at PCB.
Note 2: T terminal on Goodman, etc. capped at PCB.
(capped)
(capped)
