ICM Controls SC2201 User Manual

20
SimpleComfort
®

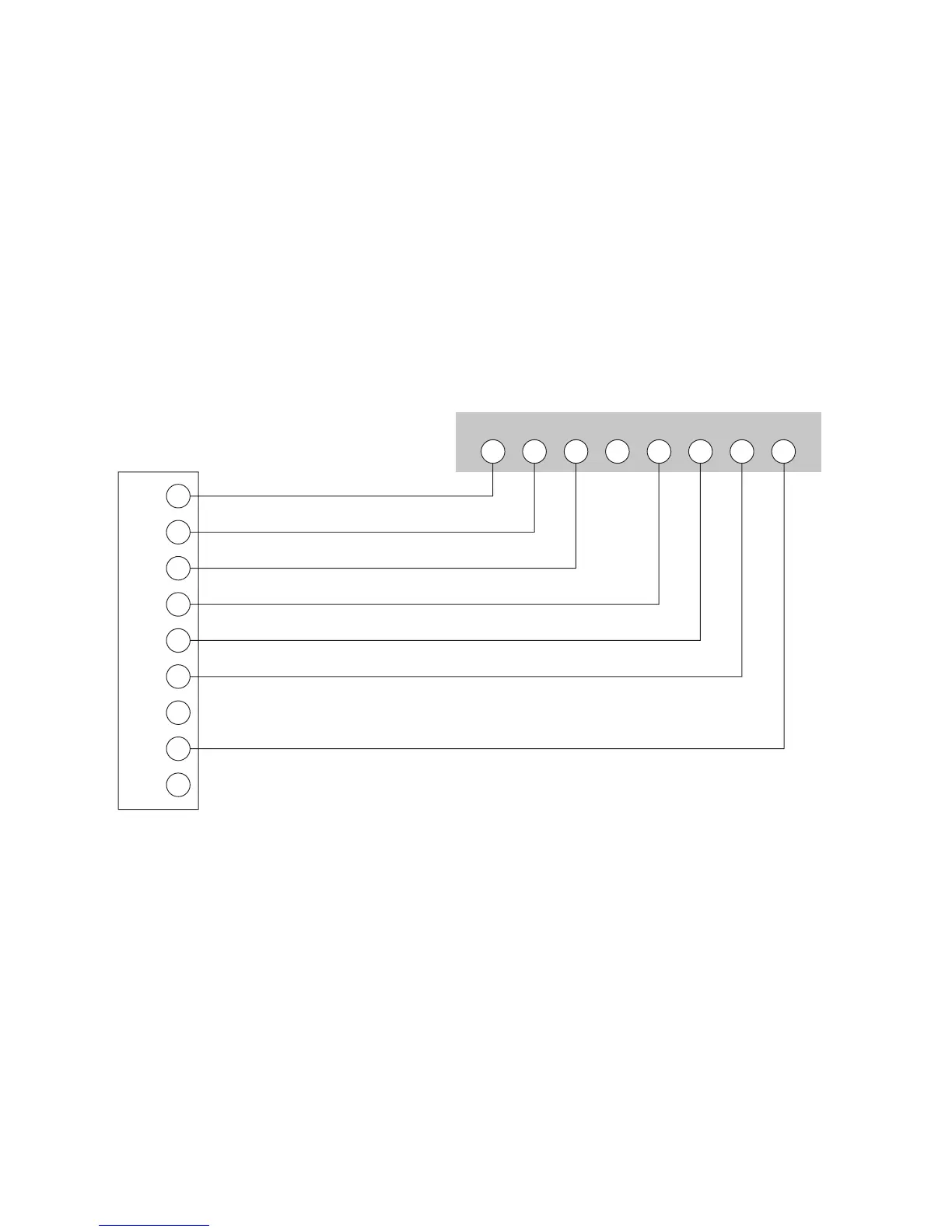

2201 Electronic Thermostat Conversion to:
FHP 1 Stage Heat Pump Systems
SimpleComfort
®
2201
W2 CEGBOY1R
FHP 1 Stage
Low Voltage Terminal Board
R
Y
O
G
E
W
C
24 VAC, Return
Compressor Contactor
Reversing Valve (Cooling Mode)
Fan Contactor Circuit
Emergency Heating Circuit
2nd Stage Heating Circuit
24 VAC, Common
Note: For units with ECM motors and the 641-065 interface board, connect W2 from the thermostat to W1 at the heat pump.
