Icom IC-2100H

59
14
OTHER FUNCTIONS
■ Data cloning
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or , data
from a PC to a transceiver using the optional CS-2100
CLONING SOFTWARE .
➀ Connect the OPC-474 cloning cable with adapter plugs to
the [SP] jack of the master and slave transceivers.
• The master transceiver is used to send data to the slave trans-
ceiver.
➁ While pushing [M/CALL] (second switch from right)x, turn
power ON to enter cloning mode (master transceiver
only—power on only for slave transceiver).

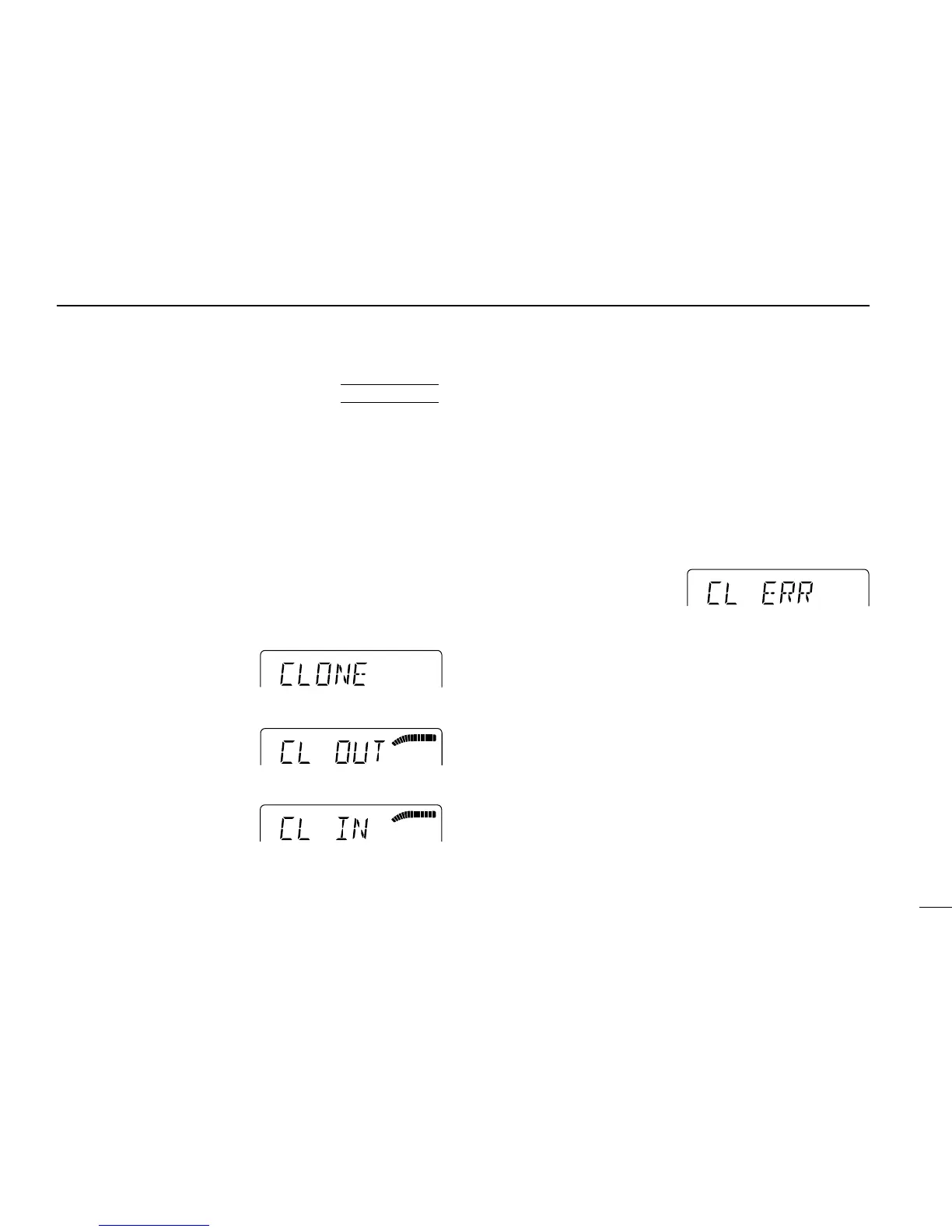

•“CLONE” appears and the
transceivers enter the clone
standby condition.
➂ Push [S.MW] on the master transceiver.
•“CLOUT” appears in the mas-
ter transceiver’s display and
the S/RF indicator shows that
data is being transferred to the slave transceiver.
•“CL IN” appears automatically
in the slave transceiver’s dis-
play and the S/RF indicator
shows that data is being received from the master transceiver.
➃ When cloning is finished, turn power OFF, then ON to exit
cloning mode.
AT
POWER ON
D Cloning using a PC
Data can be cloned to and from a PC (IBM compatible) using
the optional CS-2100
CLONING SOFTWARE
and the optional
OPC-478
CLONING CABLE . Consult the CS-2100
CLONING
SOFTWARE
HELP file for details.
D Cloning error
☞ NOTE: DO NOT push any key on the slave transceiver
during cloning. This will cause a cloning error.
When the display at right ap-
pears, a cloning error has oc-
curred.
In such a case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
