PANEL DESCRIPTION

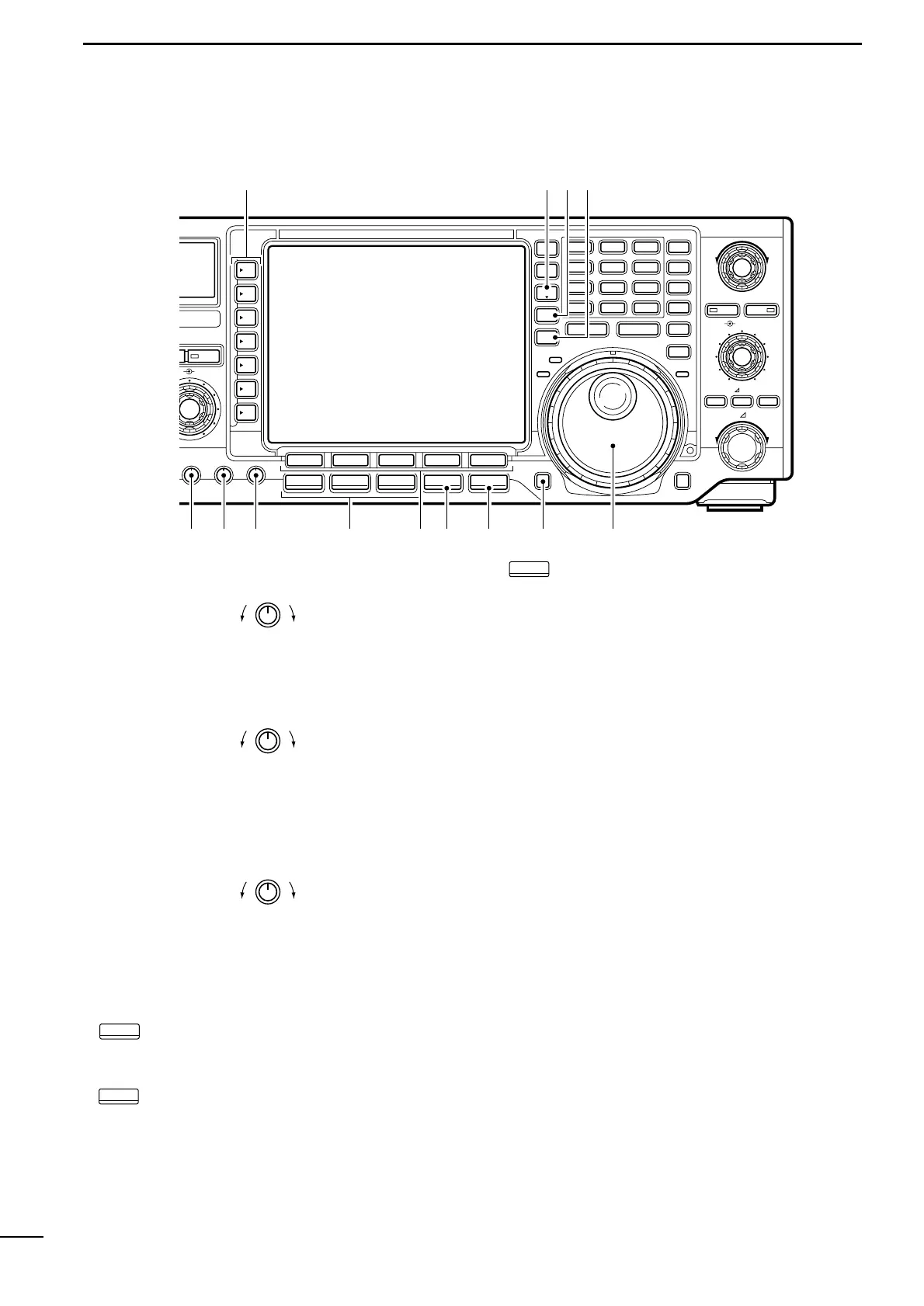

■ Front panel
(continued)
!7
COMPRESSION LEVEL CONTROL [COMP] (p. 37)
Adjusts the speech compression level in SSB.
!8
SEMI BREAK-IN DELAY CONTROL [BK-IN DELAY]
Adjusts the transmit-to-receive switching delay time
for CW semi break-in operation.
!9 ELECTRONIC CW KEYER SPEED CONTROL
[KEY SPEED] (p. 43)
Adjusts the internal electronic CW keyer’s speed.
•6 wpm (min.) to 60 wpm (max.) can be set.
@0 MODE SWITCHES
Selects the desired mode. (p. 25)
•Announces the selected mode when an optional UT-102
is installed. (pgs. 71, 74)
➥ Selects USB and LSB mode alternately.
➥ Selects SSB data mode (USB-D, LSB-D)
when pushed for 1 sec. in SSB mode.
➥ Selects CW and RTTY mode alternately.
➥ Switches CW and CW-R
(CW reverse)
mode when pushed for 1 sec. in CW
mode.
➥ Switches RTTY and RTTY-R (RTTY re-
verse)
mode when pushed for 1 sec. in
RTTY mode.
➥ Selects AM and FM mode alternately.
➥ Selects AM/FM data mode
(AM-D, FM-D)
when pushed for 1 sec. AM/FM mode.
@1 LCD FUNCTION SWITCHES [F-1]–[F-5]
Push to select the function indicated in the LCD dis-
play above these switches.
•Functions vary depending on the operating condition.
@2 FILTER SWITCH [FILTER] (p. 29)
➥ Selects one of 3 IF filter settings.
➥ Enters the filter set mode when pushed for 1 sec.
@3 EXIT/SET SWITCH [EXIT/SET]
➥ Exits from a set mode, etc. when pushed.
➥ Selects the set mode screen when pushed for
1 sec. (p. 64)
@4 REC/PLAY SWITCH [REC/PLAY] (p. 38)
➥ Play back the recorded audio in the channel R4
of the voice memory when pushed.
➥ Records the receiving signal contents into the
channel R4 (max. 15 sec.) of the voice memory
when pushed for 1 sec.
@5 TUNING DIAL (p. 23)
Changes the displayed frequency, selects set mode
items, etc.
@6 MAIN/SUB SWITCH [MAIN/SUB]
Selects access to the main or sub readout.
•The sub readout frequency is displayed in outline or
mesh font. The sub readout functions only during split
operation or dualwatch.
@7 VFO/MEMORY SWITCH [VFO/MEMO]
➥ Switches the selected readout operating mode
between the VFO mode and memory mode when
pushed. (pgs. 22, 51)
