Installation and Connections
14

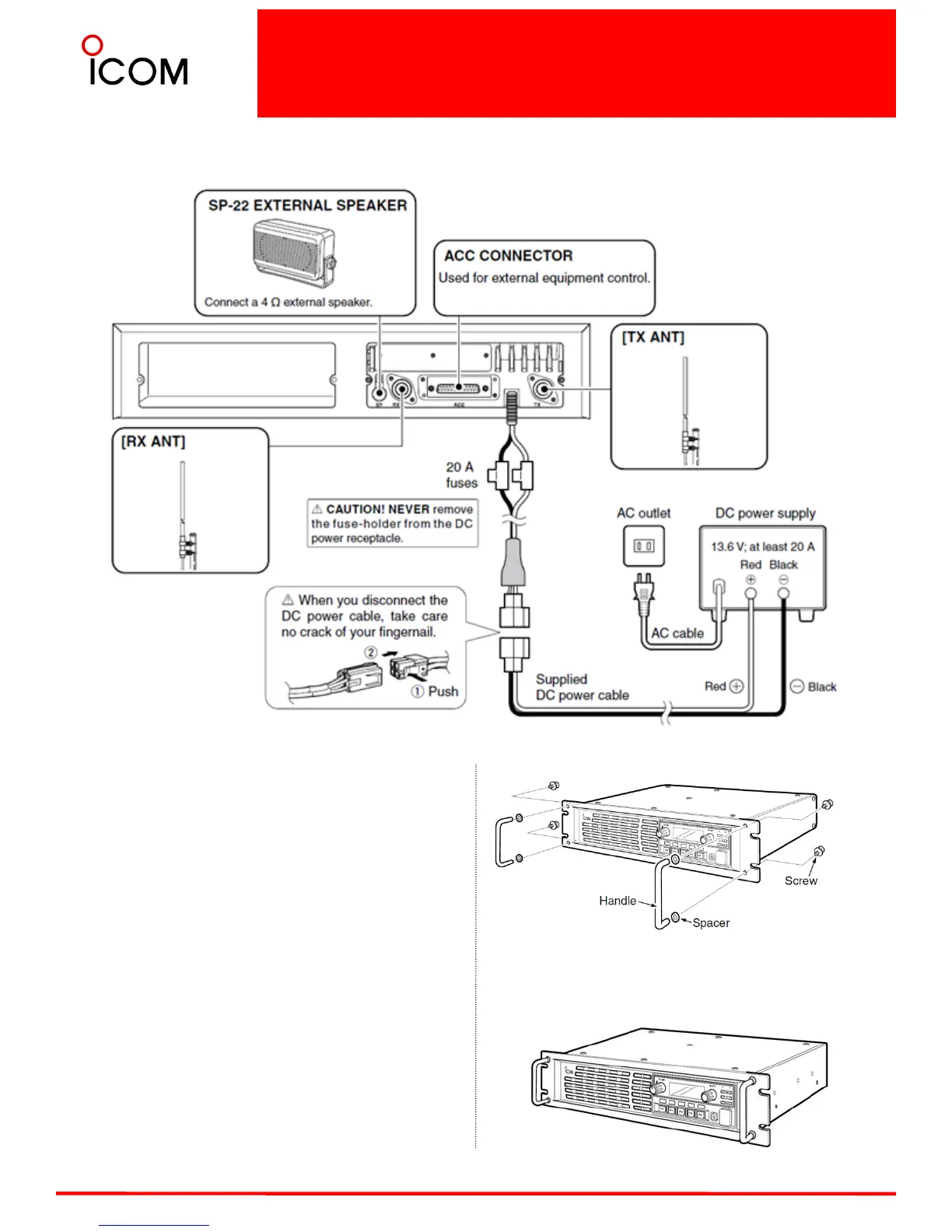

Rear panel connections
Power supply connection
Make sure the repeater’s power is turned OFF when
connecting a DC power cable.
CAUTION: Voltages greater than 16 V DC will
damage the repeater. Check the source voltage
before connecting the power cable.
Mounting the repeater
↓ Using the supplied handle
The supplied handles are available for mounting the
repeater into a 19 inch rack. The handles can be
installed to the repeater’s front panel.
1. Attach the supplied handles to both sides of the
repeater’s front panel with the spacers, then tighten
the screws as below.
2. The completed installation should look like
as below.
