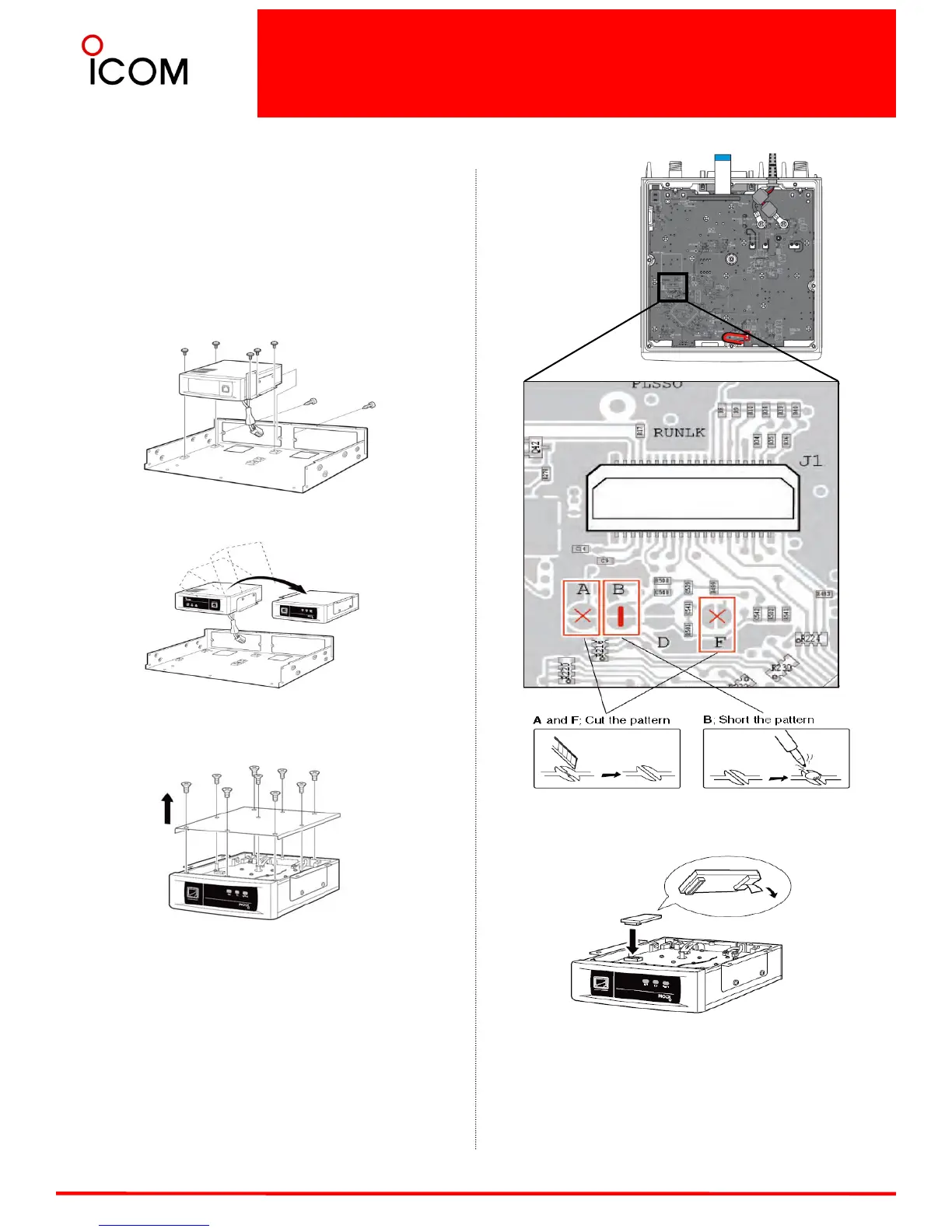

3-1-3 OPTIONAL UNIT INSTALLATION
17
2. Turn the MAIN UNIT assembly upside down.
3. Removing the MAIN UNIT
1.Unscrew 9 screws, and remove the cover.
2. Removing the MAIN UNIT assembly
1. Unscrew 5 screws which settles the MAIN
UNIT assembly.
NOTE: Please see the case opening procedure
from 1. to 3. on page 15.
INSTLLATION of UT-109R or UT-110R
3. Remove the protective paper of optional unit,
and install it to the J1 as below.
4. Replace the cover, screws, etc. to recover
the whole assembly.
NOTE: When uninstalling the scrambler unit
Be sure to return the disconnected or connected
points to their original states, otherwise no TX
modulation or AF output is available.
DISASSEMBLY INSTRUCTION
1. Removing the front panel
NOTE: The installation procedure for MAIN UNIT
of IC-FR5100 or IC-FR6100 is also applicable to the
UR-FR5100 or UR-FR6100.
1. Disassemble the repeater until the MAIN UNIT
is exposed. (See above 1-3)
2. Modify the patterns on the MAIN UNIT as below.
To Next Page
