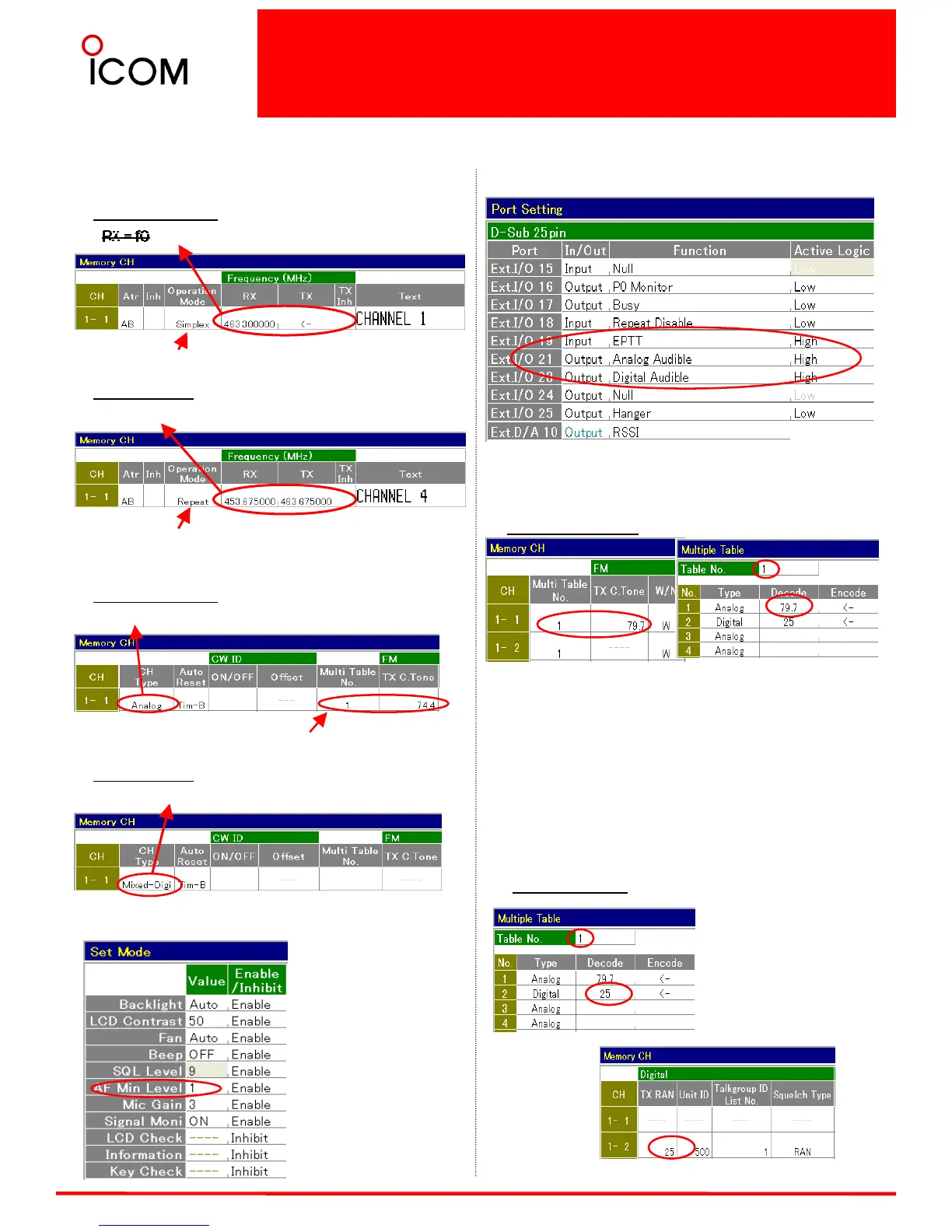

5-2-1 Digital-analogue Cross mode -Setting
39
¾ Repeater Setting
Analogue Repeater
Digital Repeater
TX = f2
RX = f1 TX = f3
1. Frequency and operation mode setting
Operation Mode Simplex
2. CH Type and CTCSS/DTCS setting
CH Type = analogue
CH Type = Mixed-Digital
Necessary to setup when using
CTCSS/DTCS.
3. AF Min Level setting
AF Min Level = 0 is
inhibit Audible output
mode therefore set
AF Min Level = 1
4. External I/O Port Setting
5-1. CTCSS setting
When using CTCSS of the analogue
repeater.
Note: In order to add CTCSS to the modulation input
from the D-SUB 25pin, TX C.Tone setting is
necessary on top of the Multiple table setting.
When using RAN of the Digital repeater
5-2. RAN setting
analogue Repeater
Note: Digital Repeater setup is not required.
Note: analogue Repeater setup is not required
Digital Repeater
Operation Mode Repeat
Digital Repeater
Analogue Repeater
