QUICK REFERENCE GUIDE
New2001
■ Preparation
D Battery installation
qRemove the battery cover
from the receiver.
wInstall 2 R6(AA) size Ni-
Cd, Ni-MH or alkaline cell
batteries.
• Be sure to observe the cor-
rect polarity.
• Charge Ni-Cd or Ni-MH
batteries before use. (See
the right page for charging
instructions.)
Keep battery the contacts clean. It’s a good idea to clean
the battery terminals once a week.
D Belt clip
Conveniently attaches to
your belt.
Slide the belt clip into the
plastic loop on the back of
the receiver.
DD
Antenna

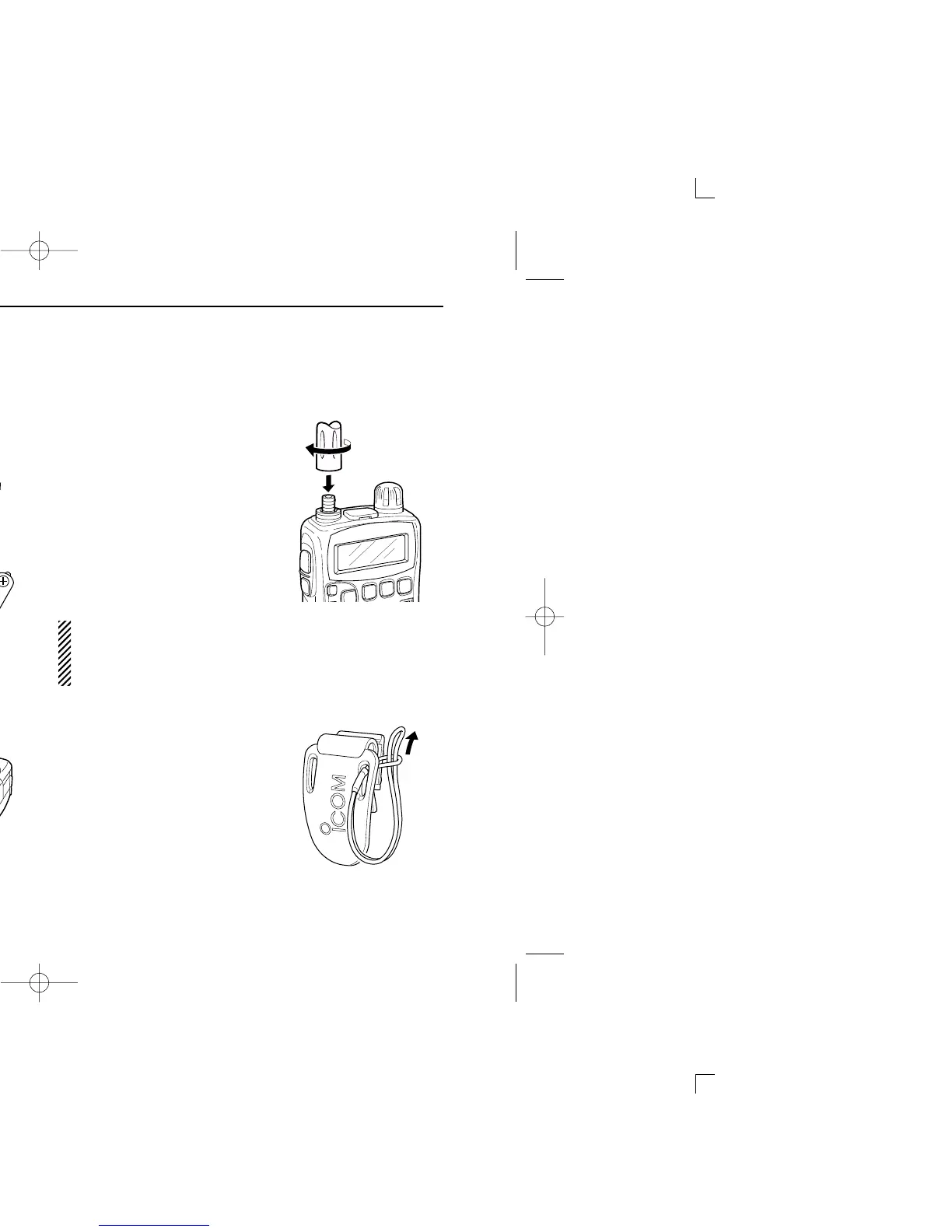

Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at right.
NEVER hold the antenna when car-
rying the receiver.
Keep the jack cover attached when
jack is not in use to protect the con-
nectors from dust and moisture.
✔
For your information
Third-party antennas may increase receiver performance.
An optional AD-92SMA
ANTENNA CONNECTOR ADAPTER
is
available to connect an antenna with a BNC connector.
D Handstrap
Slide the handstrap through the
loop on the side of the belt clip as il-
lustrated at right. Facilities carrying.
