10 OTHER FUNCTIONS
New2001
■ Data cloning
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one receiver to another; or data from
a personal computer to a receiver using the optional CS-R5
CLONING SOFTWARE .
D Cloning between receivers
qConnect the OPC-474 cloning cable to the [SP] jack of the
master and sub-receivers.
• The master receiver is used to send data to the sub-receiver.
wWhile pushing [V/M•S.MW•~], turn power ON to enter
cloning mode
(master receiver only— power ON only for sub-re-
ceiver).
ePush [SQL] on the master receiver.
• The receiver show following indications.
rWhen cloning is finished, turn power OFF, then ON to exit
cloning mode.

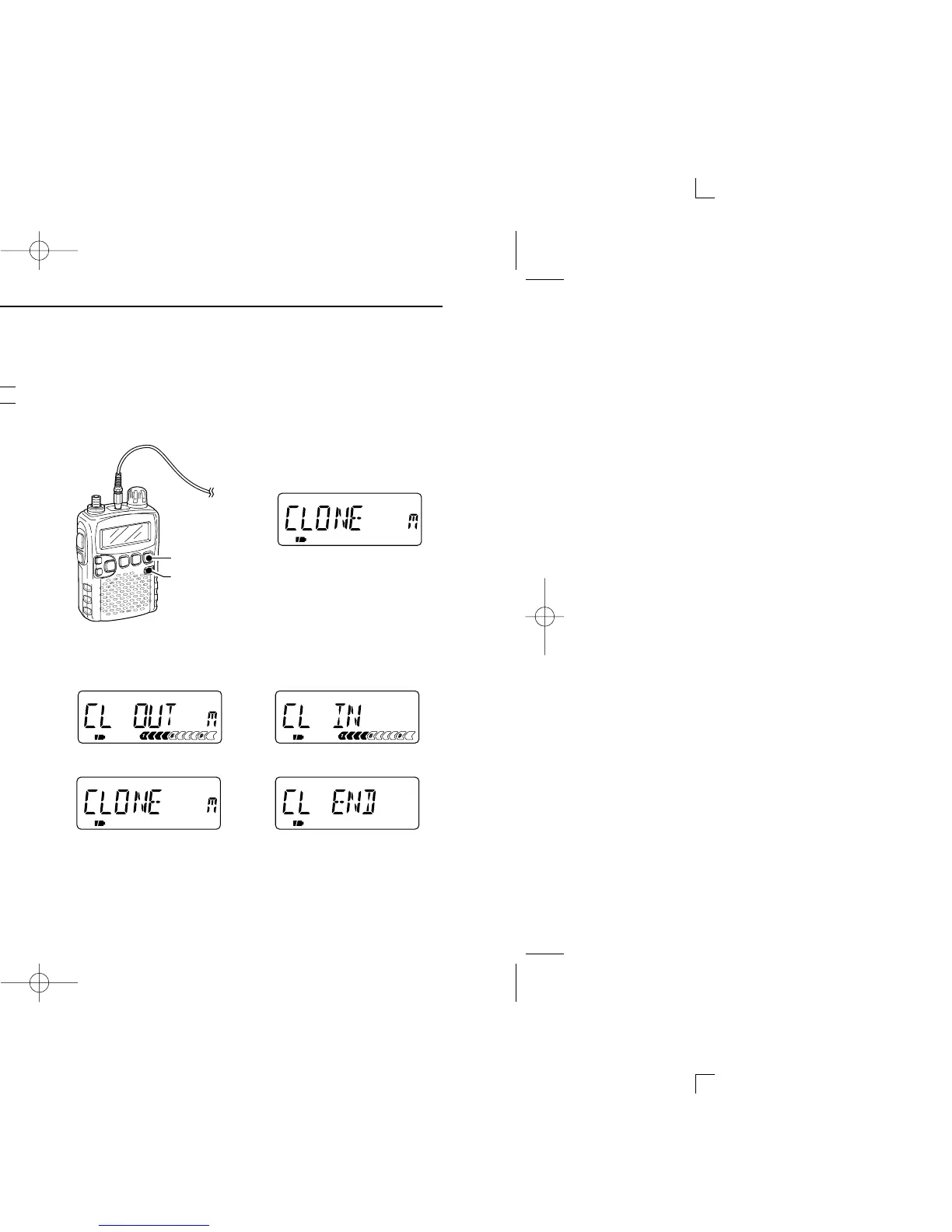

During cloning
After cloning
Master receiver indications Sub-receiver indications
Master receiver
[V/M•S.MW•~]
[PWR]
“CLONE” and “m” appear
when entered into cloning
mode.
to [SP] to [SP]
Master
receiver
Sub-
receiver
AT POWER ON
