Iconia B1-A71 - Mainboard Top Layout

Jumper and Connector Locations 3-2
Jumper and Connector Locations
Mainboard Top View

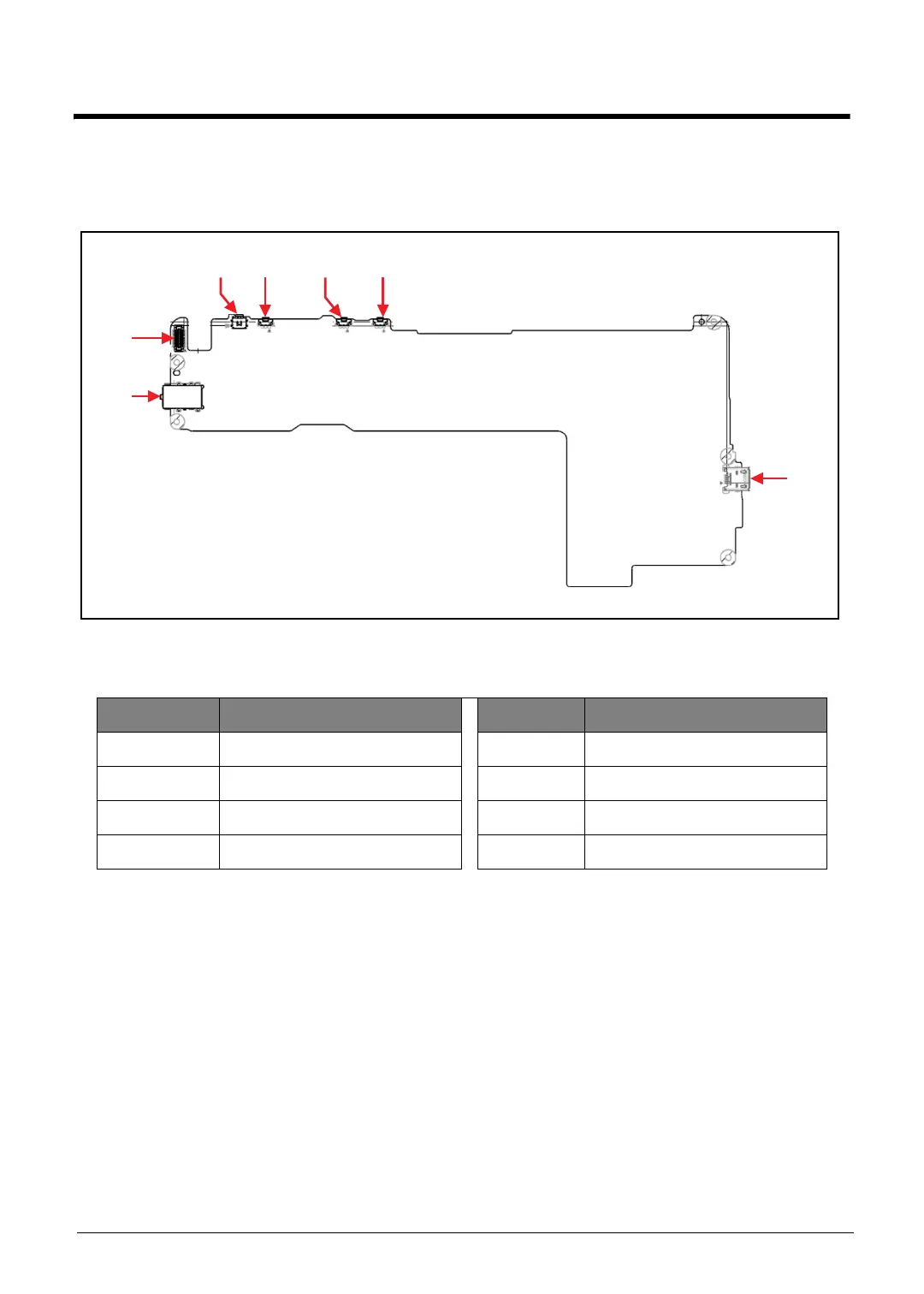

Figure 3-1. Mainboard Top
Table 3-1. Mainboard Top Jumper and Connectors
Item Description Item Description
SW2 Reset Button JP18 Camera
SW1 Power Button JP27 Headphone Jack
SW3 Volume Up JP23 Micro USB
SW4 Volume Down
SW1SW2 SW3
JP18
JP27
SW4
JP23
