Iconia B1-A71 - Mainboard Bottom Layout

3-3 Jumper and Connector Locations
Mainboard Bottom View

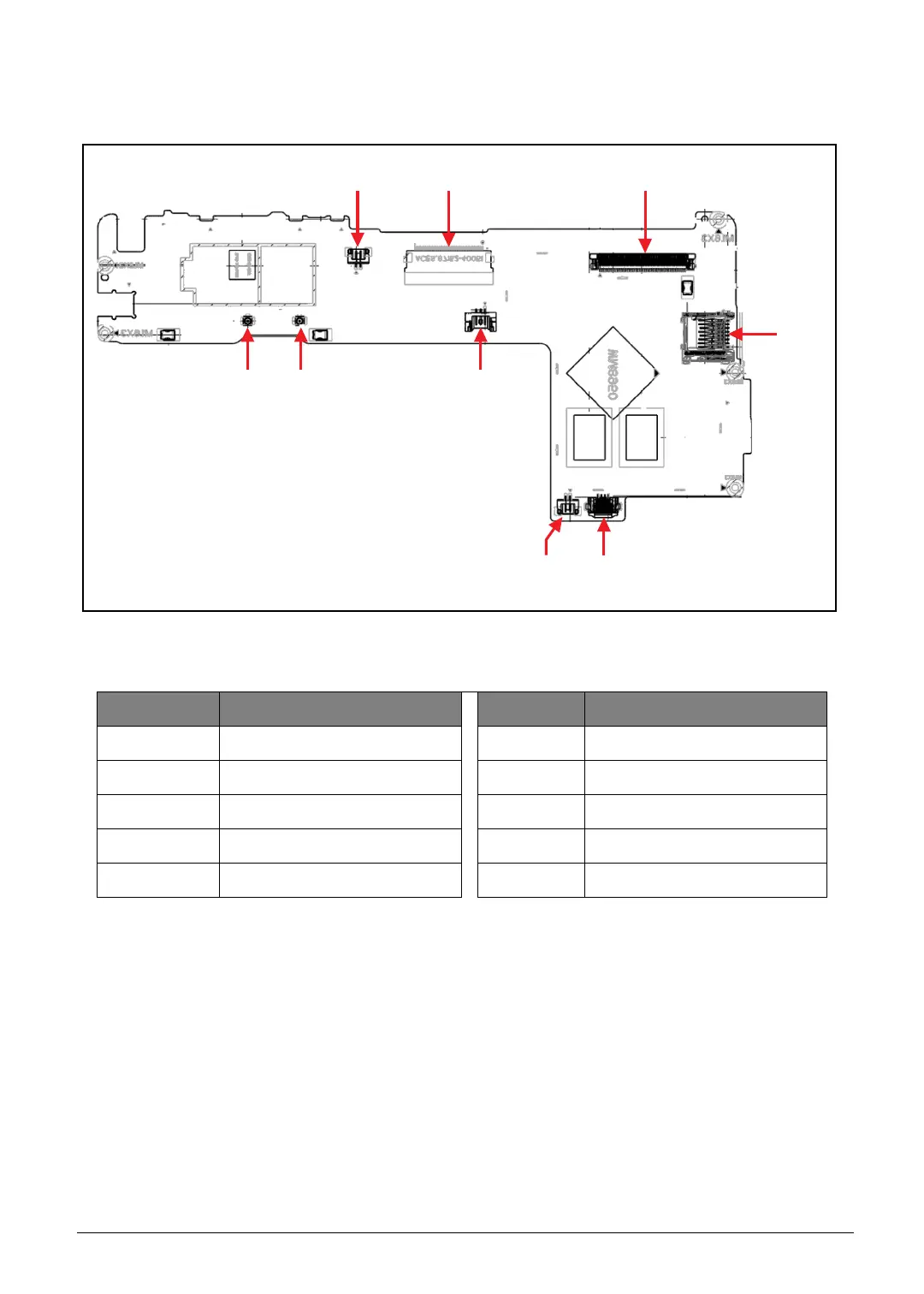

Figure 3-2. Mainboard Bottom
Table 3-2. Mainboard Bottom Jumper and Connectors
Item Description Item Description
JP19 Microphone JP25 Battery Connector
JP3 LCD Connector JP22 SD Card
JP26 Touch Connector JP20 Speaker Connector
JP1 WiFi Antenna JP29 Vibrator
JP2 GPS Antenna
JP1 JP2 JP25
JP29JP20
JP19 JP3 JP26
JP22
