5-31 Service and Maintenance
WLAN Antenna Removal
Prerequisite:
î Lower Case Removal on page 5-8

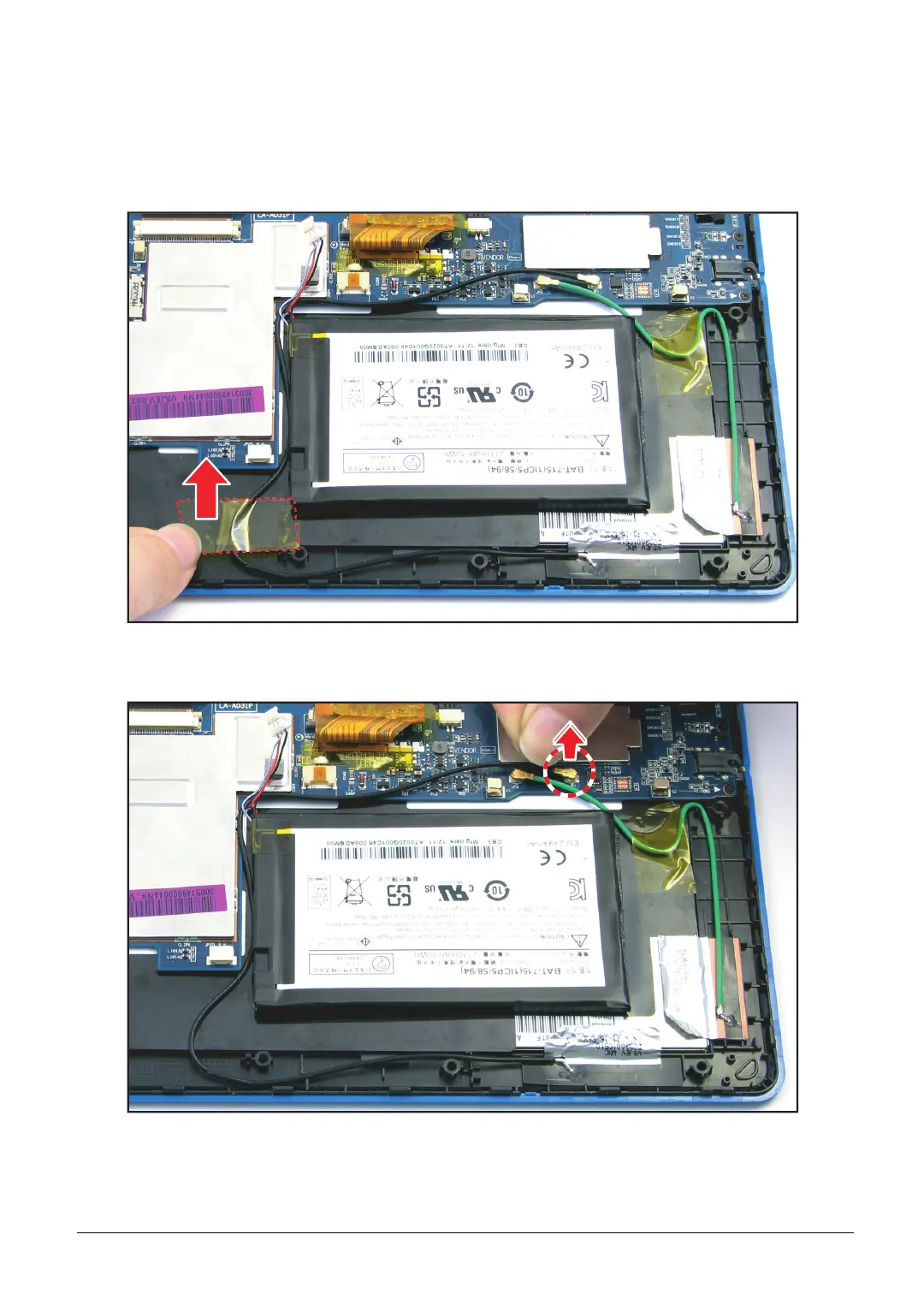

1. Remove the protective tape securing the WLAN antenna cable in place.
Figure 5-45. Removing the Protective Tape
2. Disconnect the WLAN antenna connector from the mainboard connector.
Figure 5-46. Disconnecting the WLAN Antenna Cable
To Next Page
