5-21 Service and Maintenance
Microphone Removal
Prerequisite
î Lower Case Removal on page 5-8

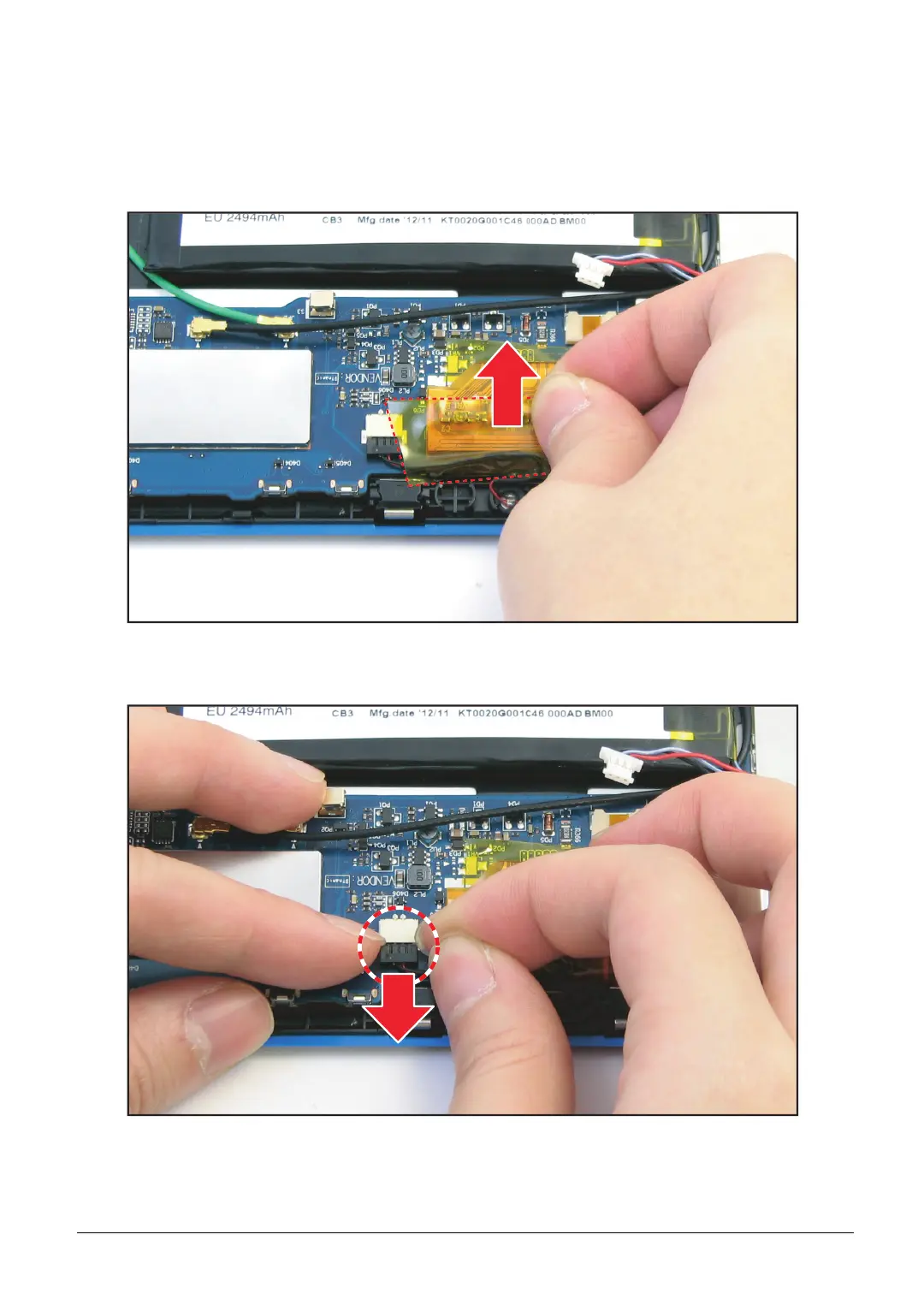

1. Remove the protective tape covering the microphone cable.
Figure 5-28. Removing the Protective Tape
2. Disconnect the microphone cable connector from the mainboard connector.
Figure 5-29. Disconnecting the Microphone Cable
To Next Page
