5-37 Service and Maintenance
GPS Antenna Installation

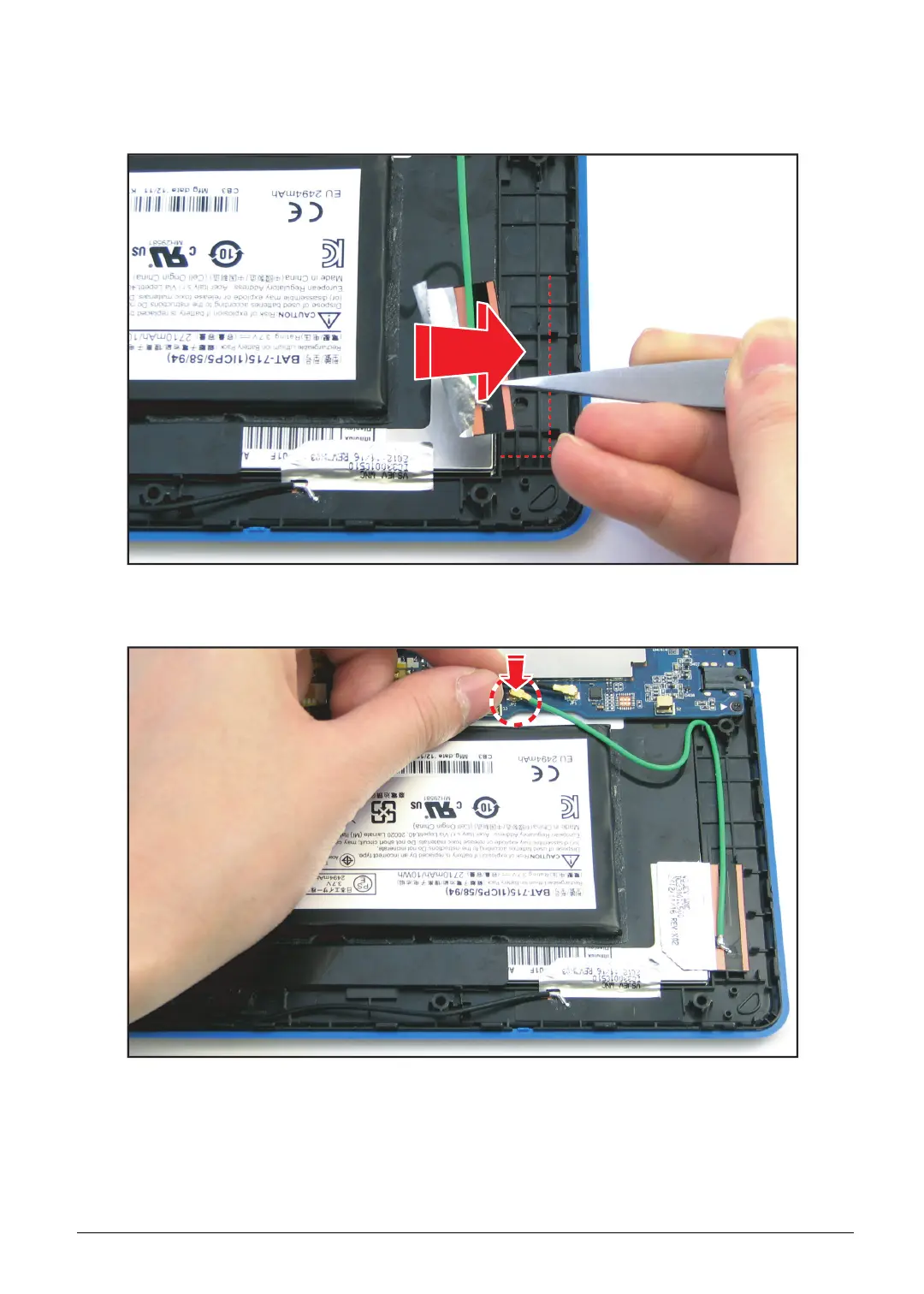

1. Using the tweezers, align and install the GPS antenna to the antenna slot on the bezel.
Figure 5-54. Installing the GPS Antenna
2. Connect the GPS antenna connector to the mainboard connector (marked JP2).
Figure 5-55. Connecting the GPS Antenna Connector
