5-23 Service and Maintenance
Microphone Installation
1. Install the microphone to its slot on the bezel.

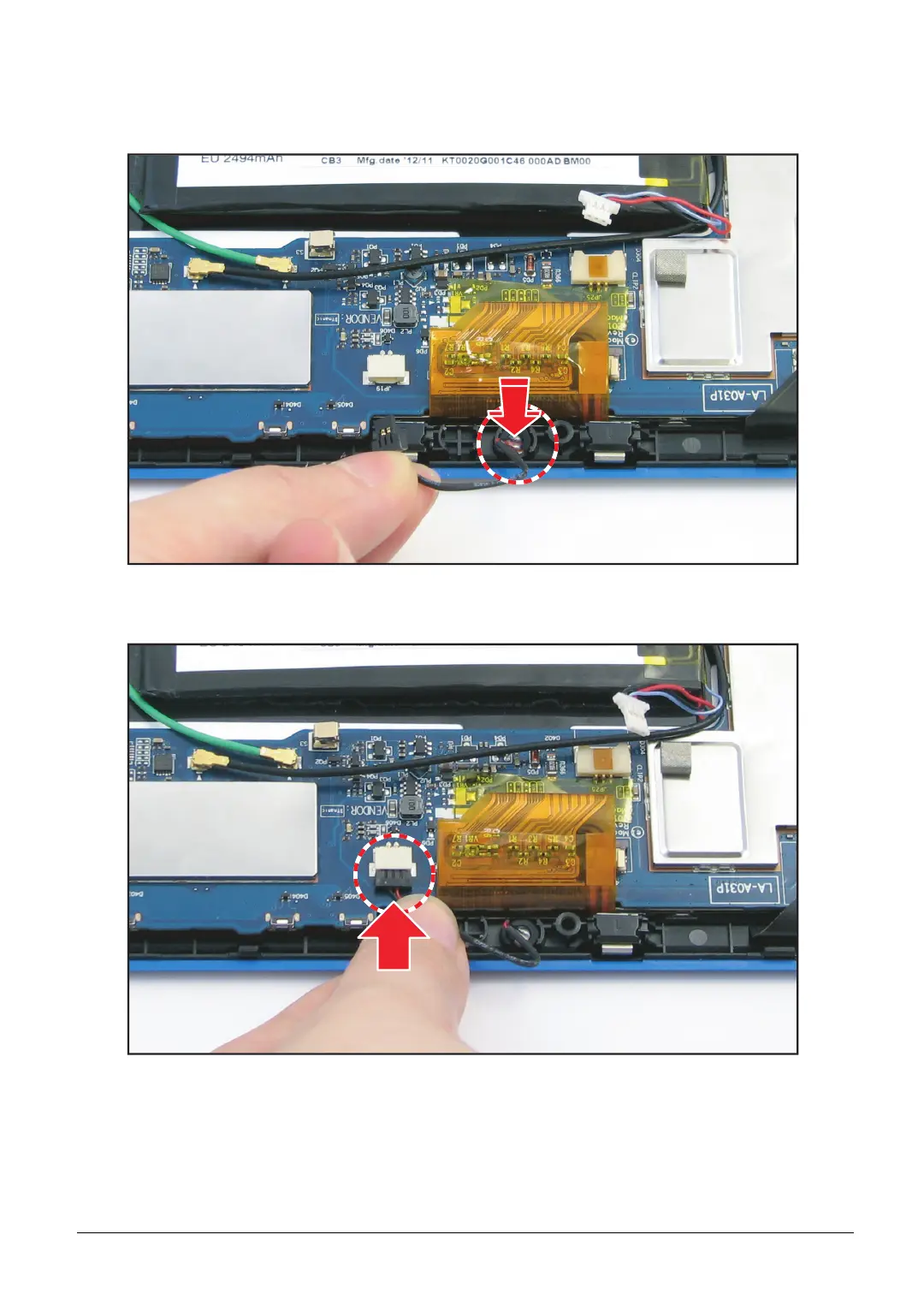

Figure 5-31. Installing the Microphone
2. Connect the microphone cable connector to the mainboard connector.
Figure 5-32. Connecting the Microphone Cable
