Service and Maintenance 5-26

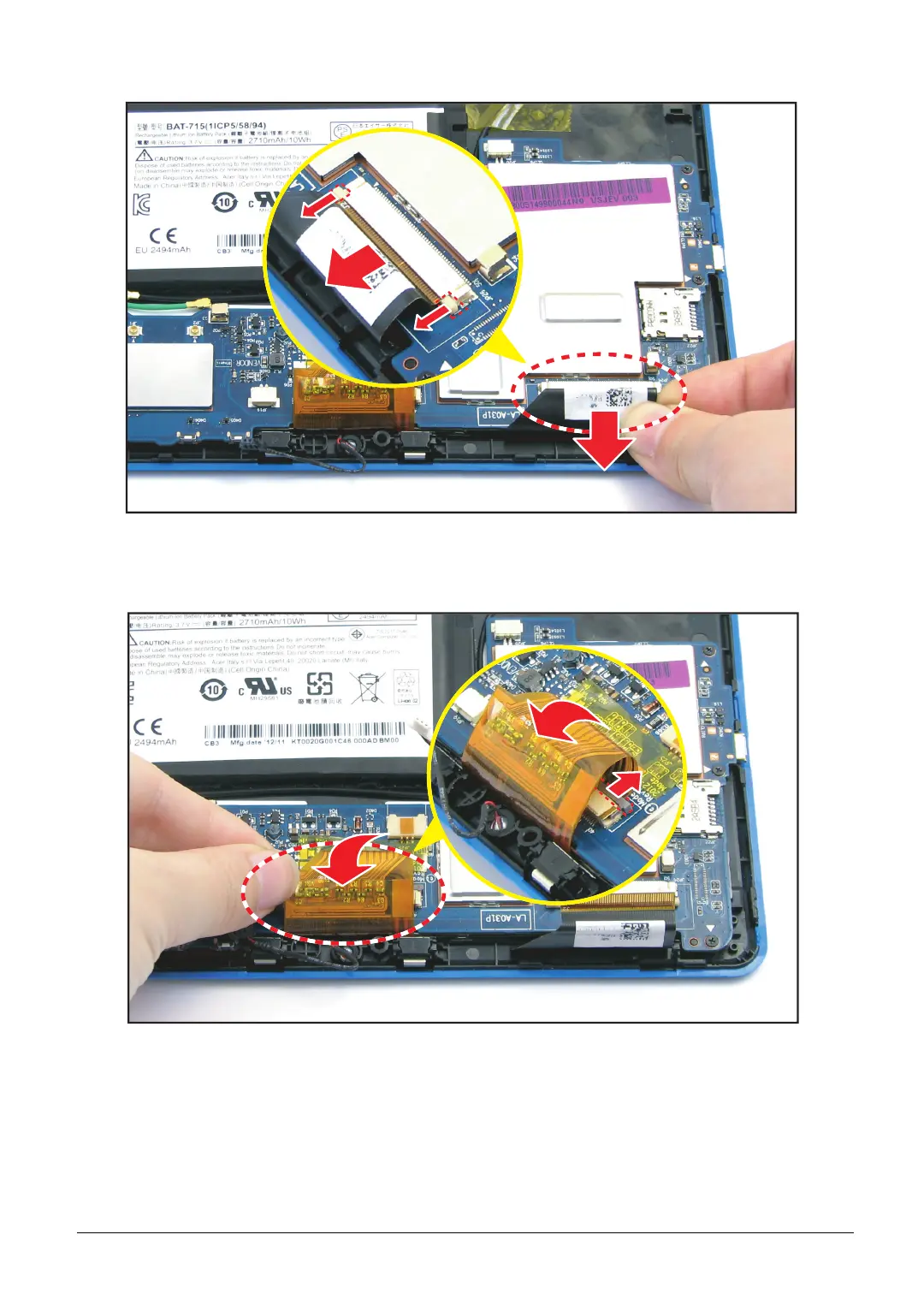

3. Pull the connector pin to release the lock and then remove the touch control cable.
Figure 5-36. Disconnecting the Touch Control Cable
4. From underneath the LCD panel cable, pull out the connector pin to release the lock and then
remove the LCD panel cable.
Figure 5-37. Disconnecting the LCD Panel Cable
To Next Page
